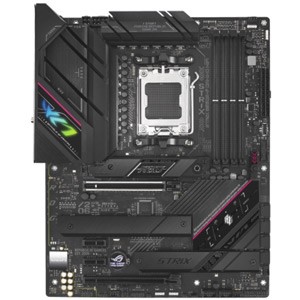

Asus ROG STRIX B650E-F GAMING WIFI AMD B650 AM5 ATX Motherboard

Support: (812)282-2787

Asus ROG STRIX B650E-F GAMING WIFI AMD B650 AM5 ATX Motherboard

SKU:	800-51187E

Integrated Radeon Graphics - HDMI / DisplayPort
Max 192GB / 4x DDR5 DIMM / Up to 8000+ (O.C.)
4x SATA 6GB/s, 3x M.2 / RAID 0, 1, 10
5x USB 3.2 G2 (3x USB-C), 6x USB 3.2 G1, 8x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 4.0 x1

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: AMD Ryzen 7 7700X 8-Core 4.5GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 7900X 12-Core 4.7GHz /12MB cache AM5 CPU (Retail)

: AMD Ryzen 9 7950X 16-Core 4.5GHz /16MB cache AM5 CPU (Retail)

This mean machine is the heart of your next hot rod. With the stunning speed of PCIe 5.0 and WiFi 6E, hearty cooling from onboard heasinks, and advanced power design engineered for the latest Ryzen processors, the ROG STRIX B650E-F GAMING WIFI leaves its competition in the dust.

Description

Specifications

CPU Support

AMD Ryzen 9000/8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD B650E

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-DDR5 8000+(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC & Non-ECC, Un-buffered Memory

Maximum RAM

192GB

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
1 x USB 3.2 Gen2 Type-C port
2 x USB 3.2 Gen2 Type-A ports
4 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi Module

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (max x4)
2 x PCIe 4.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 5.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Intel 2.5 Gb Ethernet

Integrated Wifi

2x2 Wi-Fi 6E & Bluetooth v5.2

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port via header
2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
4 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
