Asus ROG CROSSHAIR X870E HERO AMD X870E AM5 ATX Motherboard

Support: (812)282-2787

Asus ROG CROSSHAIR X870E HERO AMD X870E AM5 ATX Motherboard

SKU:	800-51006F

Integrated Radeon Graphics - HDMI, 2x USB-C 4.0
Max 192GB / 4x DDR5 DIMM / Up to 8000+ (O.C.)
4x SATA 6GB/s, 5x M.2 / RAID 0, 1, 10, 5
Up to 2x USB4-C, 10x USB 3.2 G2 (4x USB-C), 4x USB 3.2 G1, 4x USB 2.0
2x PCIe 5.0 x16

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: AMD Ryzen 7 9700X 8-Core 3.8GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 9900X 12-Core 4.4GHz /12MB cache AM5 CPU (Retail)

: AMD Ryzen 9 9950X 16-Core 4.3GHz /16MB cache AM5 CPU (Retail)

When only the fastest will do, ROG CROSSHAIR X870E HERO motherboard deliver. With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ROG X870E/X870 motherboard and AMD Ryzen 9000 and 7000 Series processors.

Description

Specifications

CPU Support

AMD Ryzen 9000/ 8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD X870E

System Bios

UEFI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory

Maximum RAM

192GB

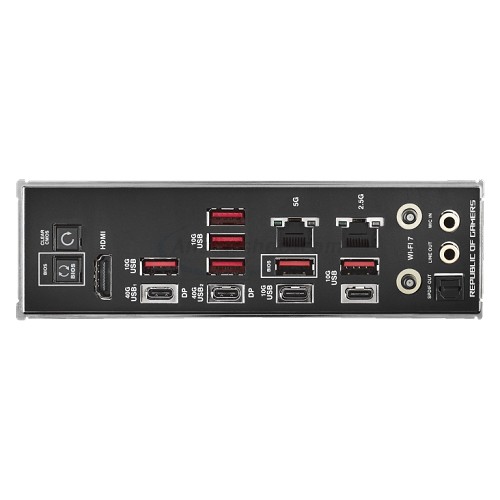

Back Panel I/O

2 x USB4 Type-C ports
2 x USB 3.2 Gen2 Type-C ports
6 x USB 3.2 Gen2 Type-A ports
1 x HDMI
1 x RJ45 2.5 GbE
1 x RJ45 5 GbE
1 x Wi-Fi module
1 x Audio I/O

Number of PCI/PCI-Express Slots

2 x PCIe 5.0 x16

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

3 x M.2 with M key, type 2242/2260/2280 support PCIe 5.0 x4 mode
1 x M.2 with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
1 x M.2 with M key, type 2280 supports PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10, 5 (Ryzen 9000 only)

Integrated Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

1 x Intel 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet

Integrated Wifi

Wi-Fi 7 (802.11be) & Bluetooth v5.4

USB

2 x USB4 Type-C ports on Back Panel I/O
2 x USB 3.2 Gen2 Type-C ports via headers
2 x USB 3.2 Gen2 Type-C ports on Back Panel I/O
6 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
4 x USB 3.2 Gen1 ports via headers
4 x USB 2.0 ports via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
