SKU: 800-51147E
  • Integrated Intel Graphics - HDMI / DisplayPort / VGA
  • Max 128GB / 4x DDR4 DIMM / Up to 5000(O.C.)
  • 4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • 2x USB 3.2 G2, 3x USB 3.2 G1 (1x USB-C), 4x USB 2.0
  • 1x PCIe 4.0/3.0 x16, 2x PCIe x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
LGA1700 socket for 12th Generation Intel Core i9 / i7/ i5 / i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B660 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
128GB
Maximum RAM
DDR4-5000(O.C.) / 4800(O.C) / 4700(O.C) / 4600(O.C) / 4500(O.C) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Back Panel I/O
  • 2 x USB 3.2 Gen2 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x VGA
  • 1 x RJ-45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0/3.0 x16
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
2 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel Gigabit LAN
USB
  • 2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-C port via header
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 2 x USB 2.0 ports on Back Panel I/O
Serial/Parallel Ports
  • 1 x Serial port via header
  • 1 x Parallel port via header
Form Factor
Micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

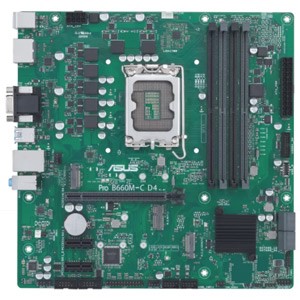

  • Pro B660M-C D4-CSM motherboard
  • User's Manual
  • Supporting DVD
  • 1 x I/O Shield
  • 2 x SATA cables
  • 1 x M.2 Key E screw package
  • 1 x M.2 SSD screw package
