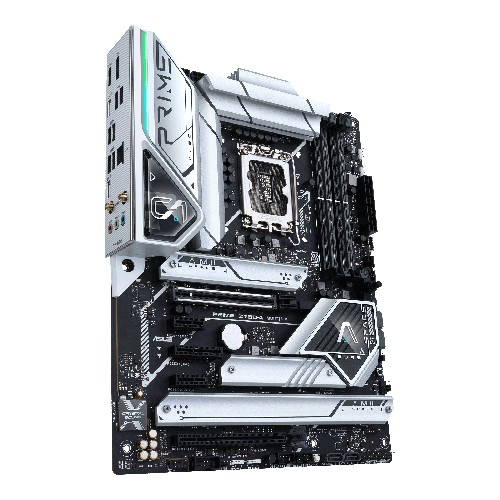

Asus PRIME Z790-A WIFI Z790 LGA1700 ATX Motherboard

Support: (812)282-2787

Asus PRIME Z790-A WIFI Z790 LGA1700 ATX Motherboard

SKU:	800-51183C

Integrated Intel Graphics - HDMI / DisplayPort
Max 128GB / 4x DDR5 DIMM / Up to 7200(O.C.)
6x SATA 6Gb/s, 5x M.2 / RAID 0, 1, 5, 10
6x USB 3.2 G2 (3x USB-C), 6x USB 3.2 G1, 4x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: Kingston Fury Beast 64GB Kit DDR5-4800 CL38 288-pin DIMM

: Kingston Fury Beast RGB 64GB Kit DDR5-4800 CL38 288-pin DIMM

: Crucial P3 Plus 1TB NVMe PCIe 4.0 M.2 SSD

The PRIME Z790-A WIFI gives you a rock-solid platform for a Intel 13th Gen CPU, a next-gen PCIe 5.0 graphics card, and blazing-fast DDR5 RAM. With its four onboard M.2 slots, this motherboard makes it easy to set up a large and speedy storage array, and it’s ready for high-speed networking with an Intel 2.5Gb Ethernet controller and onboard WiFi 6E.

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel Z790 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory

Maximum RAM

128GB

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
1 x USB 3.2 Gen2 Type-C port
3 x USB 3.2 Gen2 Type-A ports
4 x USB 3.2 Gen1 Type-A, ports
1 x HDMI
1 x DisplayPort
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi Module

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (max x4)
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 socket, with M key, type 2242/2260/2280/22110 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 & SATA mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Intel 2.5Gb Ethernet

Integrated Wifi

2x2 Wi-Fi 6E & Bluetooth v5.3

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port via header
3 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
4 x USB 3.2 Gen1 Type-A, ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A, ports via header
4 x USB 2.0 via header

Serial/Parallel Ports

1 x Serial port via header

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
