SKU: 800-51167E
  • Integrated Intel Graphics - HDMI / DisplayPort / VGA
  • Max 64GB / 2x DDR4 DIMM / Up to 3200
  • 4x SATA 6Gb/s, 1x M.2
  • 4x USB 3.2 G1, 4x USB 2.0
  • 1x PCIe 4.0 x16
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
LGA1700 socket for 12th Generation Intel Core i9 / i7/ i5 / i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel H610 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
2
Type of Memory Supported
DDR4-3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
64GB
Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse combo port
  • 2 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0
  • 1 x DisplayPort
  • 1 x VGA
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
1 x PCIe 4.0 x16
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
1 x M.2 socket, with M key, type 2280 support PCIe 3.0 x4 mode
Integrated Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Realtek Gigabit Ethernet
USB
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 2 x USB 2.0 on Back Panel I/O
  • 2 x USB 2.0 via header
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
1 x PS/2 Keyboard/Mouse combo port
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

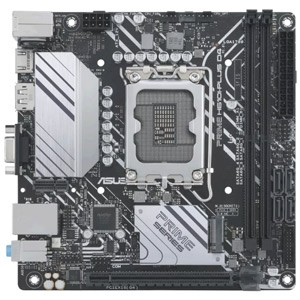

  • PRIME H610I-PLUS D4 motherboard
  • User's Manual
  • Supporting DVD
  • 1 x I/O Shield
  • 2 x SATA cables
  • 1 x M.2 Screw Package
  • 1 x Vertical M.2 Key E bracket set
