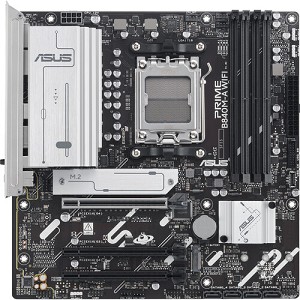

Asus PRIME B840M-A WIFI-CSM AMD B840 AM5 mATX Motherboard

Support: (812)282-2787

Asus PRIME B840M-A WIFI-CSM AMD B840 AM5 mATX Motherboard

SKU:	800-51045E

Integrated Radeon Graphics - HDMI, 2x DisplayPort
Max 192GB / 4x DDR5 DIMM / Up to 7600+ (O.C.)
4x SATA 6GB/s, 3x M.2 / RAID 0, 1, 10, 5
Up to 2x USB 3.2 G2, 3x USB 3.2 G1 (1x USB-C), 8x USB 2.0
1x PCIe 4.0 x16. 2x PCI 3.0 x16 (x1)

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: AMD Ryzen 5 9600X 6-Core 3.9GHz /6MB cache AM5 CPU (Retail)

: AMD Ryzen 7 9700X 8-Core 3.8GHz /8MB cache AM5 CPU (Retail)

: Crucial 16GB DDR5-5600 PC5-44800 CL46 288-pin UDIMM

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The PRIME B840M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Description

Specifications

CPU Support

AMD Ryzen 9000/8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD B840

System Bios

UEFI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory

Maximum RAM

192GB

Back Panel I/O

2 x USB 3.2 Gen2 Type-A ports
1 x USB 3.2 Gen1 Type-C ports
4 x USB 2.0 Type-A ports
2 x DisplayPort
1 x HDMI
1 x Wi-Fi module
1 x RJ45 LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCI x16:
- AMD Ryzen 9000 & 7000: PCIe 4.0 x16
- AMD Ryzen 8000: PCIe 4.0 x16 (x8/x4 electrical)
2 x PCIe 3.0 x16 (x1 electrical)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 with M key, type 2280 support PCIe 4.0 x4 mode
1 x M.2 with M key, type 2242/2260/2280 support PCIe 3.0 x4 mode

Integrated SATA/SAS RAID

Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 2.5Gb Ethernet

Integrated Wifi

2x2 Wi-Fi 6E (802.11ax) & Bluetooth v5.3

USB

2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port via header
2 x USB 3.2 Gen1 ports via header
4 x USB 2.0 Type-A ports on Back Panel I/O
4 x USB 2.0 ports via headers

Serial/Parallel Ports

1 x Serial port via header

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
