SKU: 800-51035A
  • Integrated Intel Graphics - DVI-D / HDMI / VGA
  • Max 32GB / 4 Dimm DDR3 1600/1333/1066
  • 2 x SATA 6Gb/s, 4 x SATA 3Gb/s / RAID 0, 1, 10, 5/ 0 x IDE / 0 x FDD
  • Up to 4 x USB 3.0, 10 x USB 2.0
  • 1 x PCIe 3.0/2.0 X16, 1 x PCIe 2.0 X16 (X4), 1 x PCIe X1, 3 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
Intel Socket 1155 for 3rd/2nd generation processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel H77
System Bios
UEFI BIOS
Video card slot
PCI-Express 3.0/2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 1600/1333/1066
Maximum RAM
32GB

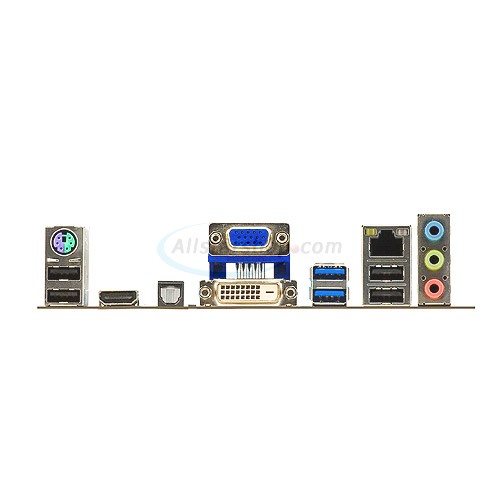

Back Panel I/O
  • 1 x keyboard/mouse combo port
  • 2 x USB 3.0
  • 4 x USB 2.0
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x VGA
  • 1 x LAN (RJ45) port
  • 3 x Audio jacks
Number of PCI/PCI-Express Slots
  • 1 x PCI-Express 3.0/2.0 X16
  • 1 x PCI-Express 2.0 X4 using X16 slot
  • 1 x PCI-Express 2.0 X1
  • 3 x PCI
On-Board EIDE/Floppy
No
Integrated SATA/SAS
    Intel H77
    • 2 x SATA 6Gb/s
    • 4 x SATA 3Gb/s
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC 887 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics
Integrated LAN
Realtek 8111F Gigabit LAN controller
USB
    Up to 14 x USB ports:
    • 2 x USB 3.0 ports on Back Panel I/O
    • 2 x USB 3.0 ports via headers
    • 4 x USB 2.0 ports on Back Panel I/O
    • 6 x USB 2.0 ports via headers
IEEE 1394
No
Serial/Parallel Ports
1 x Serial port connector on board
PS/2 Ports
1 x keyboard/mouse combo port
Form Factor
ATX
Dimensions
12" x 8.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

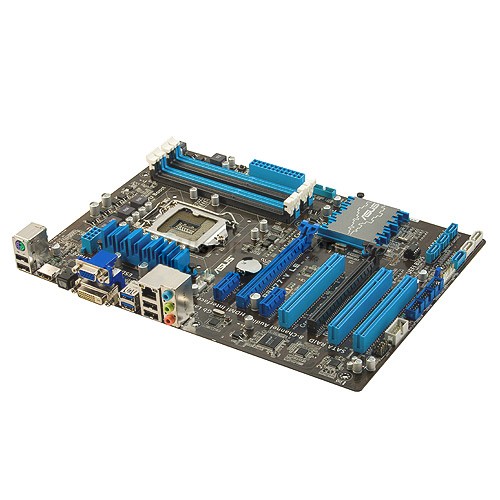

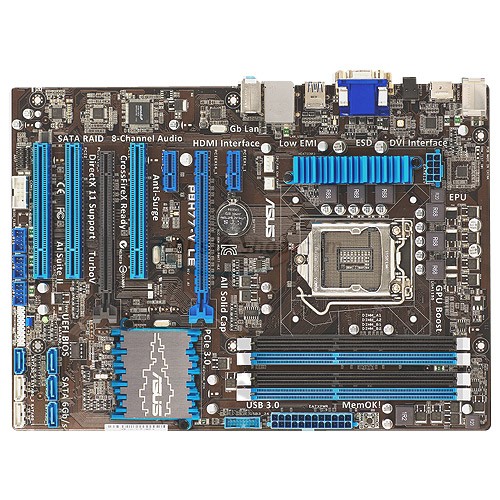

  • ASUS P8H77-V LE motherboard
  • User's manual
  • Driver CDASUS
  • I/O Shield
  • 2 x Serial ATA 6.0Gb/s cables
