ASRock Z790 PG Riptide Z790 LGA1700 ATX Motherboard

Support: (909) 590-8308

ASRock Z790 PG Riptide Z790 LGA1700 ATX Motherboard

SKU:	800-26567C

Integrated Intel Graphics - HDMI / DisplayPort
Max 128GB / 4x DDR5 DIMM / Up to 6800+(O.C.)
8x SATA 6Gb/s, 5x M.2 / RAID 0, 1, 5, 10
3x USB 3.2 G2 (1x USB-C), 7x USB 3.2 G1 (1x USB-C), 6x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Kingston Fury Beast 16GB DDR5-5600 CL40 288-pin DIMM

: Crucial P3 Plus 4TB NVMe PCIe 4.0 M.2 SSD

: WD Black SN770 PCIe 4.0 NVMe M.2 2280 SSD - 2TB

The ASRock Z790 PG Riptide offers PCI-Express 5.0 16x primary slot for graphics cards, plus a Blazing M.2 PCI-Express 5.0 M.2 slot is available for the latest ultra-high speed NVMe SSDs. Its large, multi-layer M.2 heatsink ensures optimal cooling for storage devices, avoiding any throttling.

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel Z790 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-6800+(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory

Maximum RAM

128GB

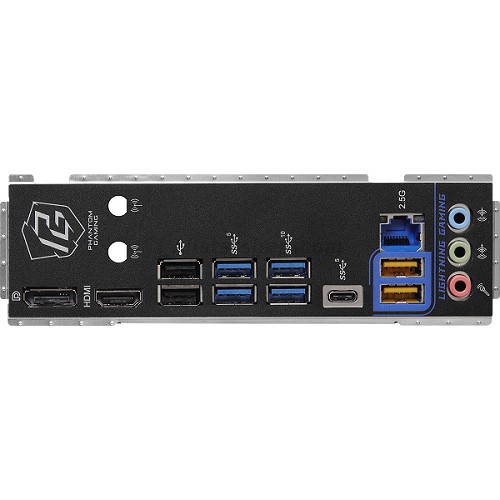

Back Panel I/O

2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen1 Type-C
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x RJ45 LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (max x4)
1 x PCIe 3.0 x1

Integrated SATA/SAS

8 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2260/2280 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2280 supports PCIe 5.0 x4 mode
3 x M.2 socket, with M key, type 2260/2280 supports PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek ALC897 7.1 High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Dragon RTL8125BG 2.5Gb Ethernet

USB

1 x USB 3.2 Gen2x2 Type-C port via header
2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port on Back Panel I/O
4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
2 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Asrock
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
Technical Support: Asrock (909) 590-8308
