SKU: 800-26537F
  • Integrated Radeon Graphics - HDMI, 2x USB-C 4.0
  • Max 256GB / 4x DDR5 DIMM / Up to 8200+ (O.C.)
  • 4x SATA 6GB/s, 5x M.2 / RAID 0, 1, 10, 5
  • Up to 2x USB4-C, 6x USB 3.2 G2 (1x USB-C), 7x USB 3.2 G1, 6x USB 2.0
  • 1x PCIe 5.0 x16, 1x PCIe 3.0 x16, 1x PCIe 3.0 x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
AMD Ryzen 9000/ 8000/7000 series processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD X870E
System Bios
UEFI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-8200(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC/non-ECC, Un-buffered Memory
Maximum RAM
256GB

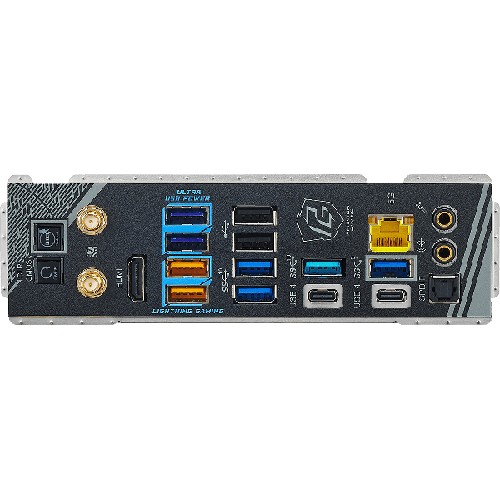

Back Panel I/O
  • 2 x USB4 Type-C ports
  • 5 x USB 3.2 Gen2 Type-A port
  • 3 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0
  • 1 x HDMI
  • 1 x RJ-45 LAN
  • 1 x Audio I/O
  • 2 x Antenna Ports
Number of PCI/PCI-Express Slots
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 with M key, type 2280 supports PCIe 5.0 x4 mode
  • 3 x M.2 with M key, type 2280 support PCIe 4.0 x4 mode
  • 1 x M.2 with M key, type 2280 support SATA & PCIe 3.0 x2 mode
Integrated SATA/SAS RAID
RAID 0, 1, 10, 5
Integrated Audio
Realtek ALC4082 5.1 CH HD Audio Codec
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek RTL8126CG 5Gb Ethernet
Integrated Wifi
802.11be 2x2 Wi-Fi 7 & Bluetooth 5.4
USB
  • 2 x USB4 Type-C ports on Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port via header
  • 5 x USB 3.2 Gen2 Type-A port on Back Panel I/O
  • 3 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 ports via headers
  • 2 x USB 2.0 on Back Panel I/O
  • 4 x USB 2.0 via header
Form Factor
ATX
Dimensions
12" x 9"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

  • ASRock X870E Nova WiFi motherboard
  • 4 x SATA cables
  • 1 x ASRock WiFi 2.4/5/6 GHz Antenna
  • 1 x ARGB Splitter Cable
  • 3 x Thermistor Cables
