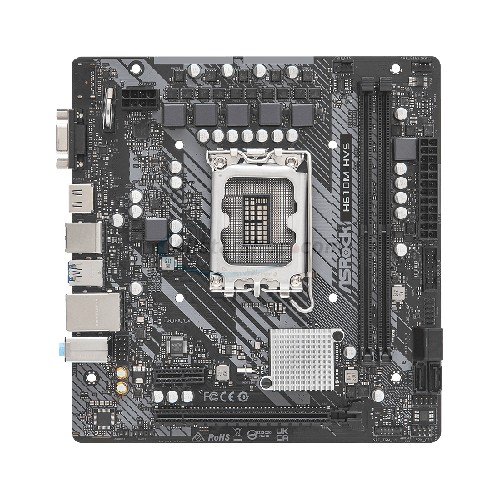

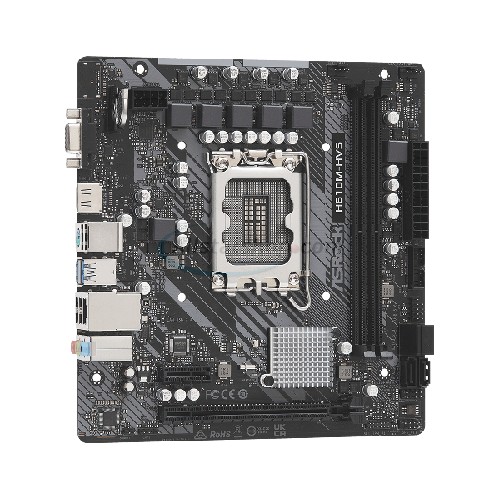

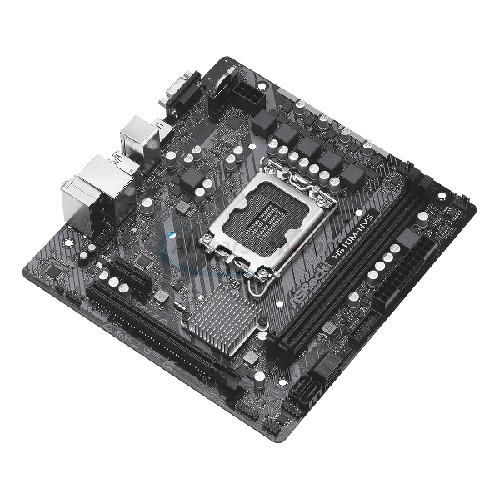

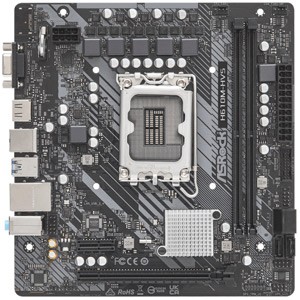

ASRock H610M-HVS H610 LGA1700 mATX Motherboard

Support: (909) 590-8308

ASRock H610M-HVS H610 LGA1700 mATX Motherboard

SKU:

800-26586

Integrated Intel Graphics - HDMI / VGA
Max 64GB / 2x DDR4 DIMM / Up to 3200
4x SATA 6Gb/s
4x USB 3.2 G1, 6x USB 2.0
1x PCIe 4.0 x16, 1x PCIe x1

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Core i5-12400 6-Core LGA1700 w/18MB cache CPU (BOX)

: Kingston 16GB DDR4-3200 CL22 288-pin DIMM

: Kingston 32GB DDR4-3200 CL22 288-pin DIMM

Specifications

CPU Support

LGA1700 socket for 12th Generation Intel Core i9 / i7/ i5 / i3 Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel H610 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR4-3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory

Maximum RAM

64GB

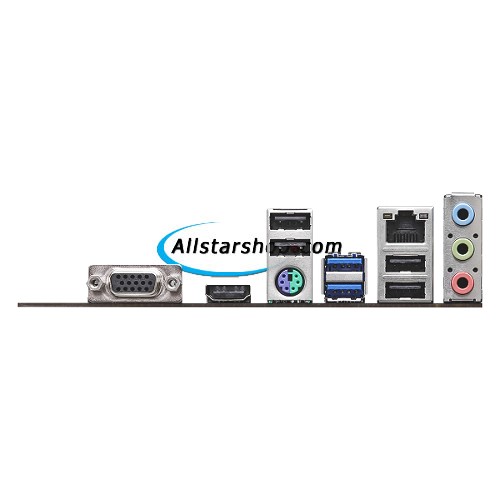

Back Panel I/O

1 x PS/2 Keyboard/Mouse
2 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0 ports
1 x VGA
1 x HDMI
1 x RJ45-LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
1 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

Integrated Audio

Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Realtek RTL8111H Gigabit Ethernet

USB

2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
4 x USB 2.0 ports on Back Panel I/O
2 x USB 2.0 ports via header

PS/2 Ports

1 x PS/2 Keyboard/Mouse

Form Factor

Micro ATX

Dimensions

7.76" x 7.4"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Asrock
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
Technical Support: Asrock (909) 590-8308
