SKU: 800-26557E
  • Integrated Graphics - VGA
  • Max 2TB / 8 DIMM DDR5-6400 ECC RDIMM
  • 4x SATA 6Gb/s, 2x M.2
  • Up to 4x USB 3.2 G1, 2x USB 2.0
  • 2x PCIe 5.0 x16
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
Intel Xeon 6700P, 6500P and 6700E series processors
Number of Processor (s)
Single (Not Included)
Chipset
System on Chip
System Bios
AMI UEFI BIOS; 512Mb SPI Flash ROM
Number of Memory Slots
8
Type of Memory Supported
  • RDIMM: 6400MT/s
  • MRDIMM: 8000MT/s
Maximum RAM
  • RDIMM: 2TB
  • MRDIMM: 1TB
Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports
  • 1 x VGA
  • 1 x RJ45 IPMI LAN
  • 2 x SFP28 25GbE
Number of PCI/PCI Express Slots
2 x PCIe 5.0 / CXL2.0 x16
Integrated SATA/SAS
4 x SATA 6Gb/s via Mini SAS HD
# of M.2 Ports
2 x M.2 2280 PCIe 5.0 x4
Integrated LAN
  • 2 x SFP28 Intel E810-XXVAM2 25GbE
  • 1 x RJ45 Realtek RTL8211F
IPMI
ASPEED AST2600
USB
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 ports via header
  • 2 x USB 2.0 ports via header
Serial/Parallel Ports
1 x Serial port via header
Form Factor
Deep Micro-ATX
Dimensions
9.6" x 10.5"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

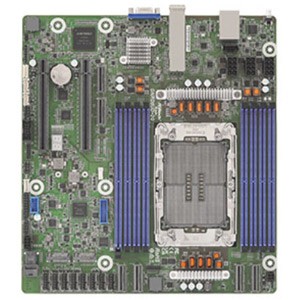

  • ASRock Rack GNRD8UD-2Q motherboard
  • Quick installation guide
  • I/O shield
  • 1 x ATX 4P to 24P Power Cable (8cm)
  • 1 x SATA 6-pin Power Cable (80cm)
  • 1 x Mini SAS HD to 4 SATA cable (60cm)
  • 2 x Screws for M.2 sockets
  • 2 x CPU Non-Fabric carriers (1xE2A, 1xE2B)

Compatible Accessories

CPU

Intel Xeon 6515P 16-Core 2.3GHz w/72MB LGA4710 CPU (Tray)
  • 16 Cores / 32 Threads / Max Turbo Boost: 3.8 GHz
  • Supported Memory: DDR5-6400
  • Max # of PCIe 5.0 Lane: 88
  • TDP: 150W
Manufacturer: Intel
Mfg P/N: PK8072006398601
Availability: Usually ships with 1-2 business days
Intel Xeon 6745P 32-Core 3.1GHz w/336MB LGA4710 CPU (Tray)
  • 32 Cores / 64 Threads / Max Turbo Boost: 4.3 GHz
  • Supported Memory: DDR5-6400
  • Max # of PCIe 5.0 Lane: 88
  • TDP: 300W
Manufacturer: Intel
Mfg P/N: PK8072006455200
Availability: Usually ships with 1-2 business days

Memory

Kingston 32GB DDR5-6400 ECC Reg CL52 288-pin RDIMM
  • PC5-6400
  • 2R x8
  • x80 ECC RDIMM
Manufacturer: Kingston
Mfg P/N: KSM64R52BD8-32MD
Availability: Usually ships with 1-2 business days
Kingston 64GB DDR5-6400 ECC Reg CL52 288-pin RDIMM
  • PC5-6400
  • 2R x4
  • x80 ECC RDIMM
Manufacturer: Kingston
Mfg P/N: KSM64R52BD4-64MD
Availability: Usually ships with 1-2 business days
Micron 64GB DDR5-6400 ECC Reg CL52 2Rx4 288-pin RDIMM
  • PC5-51200
  • Dual-rank x4
  • ECC RDIMM
Manufacturer: Micron
Mfg P/N: MTC40F2046S1RC64BR
Availability: Temporarily out of stock
Micron 96GB DDR5-6400 ECC Reg CL52 2Rx4 288-pin RDIMM
  • PC5-51200
  • Dual-rank x4
  • ECC RDIMM
Manufacturer: Crucial
Mfg P/N: MTC40F204WS1RC64BC1R
Availability: Usually ships with 1-2 business days
