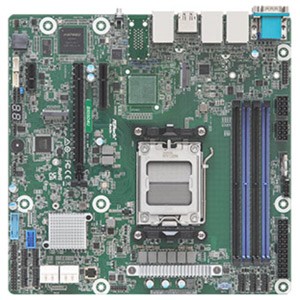

SKU: 800-26570A
  • Max 192GB / 4x DDR5 DIMM / Up to 5200
  • 4x SATA 6Gb, 2x M.2
  • 1x PCIe 5.0 x16, 1x PCIe 5.0 x8, 1x PCIe 4.0 x1
  • 2x 1GbE / 1x Dedicated Realtek IPMI GLAN
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
  • AMD EPYC 4004 processors
  • AMD Ryzen 9000/8000/7000 processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD B650E
System Bios
UEFI AMI BIOS
Number of Memory Slots
4
Type of Memory Supported
DDR5-5200 ECC/non-ECC UDIMM
Maximum RAM
192GB
Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports
  • 1 x VGA
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x RJ45 LAN
  • 1 x Dedicated IPMI LAN
  • 1 x Serial port
Number of PCI/PCI Express Slots
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 5.0 x4
  • 1 x PCIe 4.0 x1
Integrated SATA/SAS
4 x SATA
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2242/2280 supports PCIe 5.0 x4
  • 1 x M.2 socket, with M key, type 2242/2280 supports PCIe 4.0 x4
Integrated Video
ASPEED AST2600
Integrated LAN
  • 2 x Intel i210 Gigabit LAN
  • 1 x Dedicated IPMI LAN
IPMI
ASPEED AST2600
USB
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 via header
  • 2 x USB 2.0 via header
Serial/Parallel Ports
1 x Serial port on Back Panel I/O
Form Factor
Micro-ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

  • ASRock B650D4U motherboard
  • Quick Installation Gude
  • 1 x SATA cable
  • 1 x I/O Shield
  • 2 x Screws for M.2 Socket

Compatible Accessories

CPU

AMD RYZEN 5 7600 6-Core 3.8GHz /6MB cache AM5 CPU (Retail)
  • 6x Cores / 12x Threads / Turbo CORE SPEED: Up to 5.1 GHz
  • AMD Radeon Graphics
  • TDP: 65W
  • Heatsink/Fan: AMD Wraith Stealth
Manufacturer: AMD
Mfg P/N: 100-100001015BOX
Availability: Usually ships with 1-2 business days
AMD RYZEN 7 7700 8-Core 3.8GHz /8MB cache AM5 CPU (Retail)
  • 8x Cores / 16x Threads / Turbo CORE SPEED: Up to 5.3 GHz
  • AMD Radeon Graphics
  • TDP: 65W
  • Heatsink/Fan: AMD Wraith Stealth
Manufacturer: AMD
Mfg P/N: 100-100000592BOX
Availability: Usually ships with 1-2 business days

Memory

Kingston 16GB DDR5-5600 CL46 1Rx8 288-pin UDIMM
  • PC5-44800
  • Single-Rank x8
  • DDR5-5600 46-45-45 @ 1.1V
Manufacturer: Kingston
Mfg P/N: KVR56U46BS8-16
Availability: Usually ships with 1-2 business days
Kingston 32GB DDR5-5600 CL46 2Rx8 288-pin DIMM
  • PC5-44800
  • Dual-Rank x8
  • DDR5-5600 46-45-45 @ 1.1V
Manufacturer: Kingston
Mfg P/N: KVR56U46BD8-32
Availability: Usually ships with 1-2 business days
