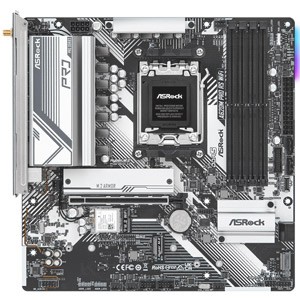

ASRock A620M Pro RS WiFi AMD A620 AM5 mATX Motherboard

Support: (909) 590-8308

ASRock A620M Pro RS WiFi AMD A620 AM5 mATX Motherboard

SKU:	800-26502H

Integrated Radeon Graphics - HDMI / DisplayPort
Max 256GB / 4x DDR5 DIMM / Up to 7200+ (O.C.)
4x SATA 6GB/s, 3x M.2 / RAID 0, 1, 10
7x USB 3.2 G1 (2x USB-C), 8x USB 2.0
1x PCIe 4.0 x16

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: AMD Ryzen 7 7700X 8-Core 4.5GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 7900X 12-Core 4.7GHz /12MB cache AM5 CPU (Retail)

: Crucial 16GB DDR5-4800 PC5-38400 CL40 288-pin UDIMM

ASRock A620M Pro RS WiFi offers a luxurious amount of USBs including Type-C for both front and rear panels, 3 M.2 Key-M onboard and 2 of which support PCIe Gen4 x4 to give multiple storage options. With a 6-layer PCB and Dr.MOS for Vcore design, A620M Pro RS can fully support the latest AMD Ryzen 9000/8000/7000 Series Processors.

Description

Specifications

CPU Support

AMD Ryzen 9000/8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD A620

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800, ECC and Non-ECC, Un-buffered Memory

Maximum RAM

256GB

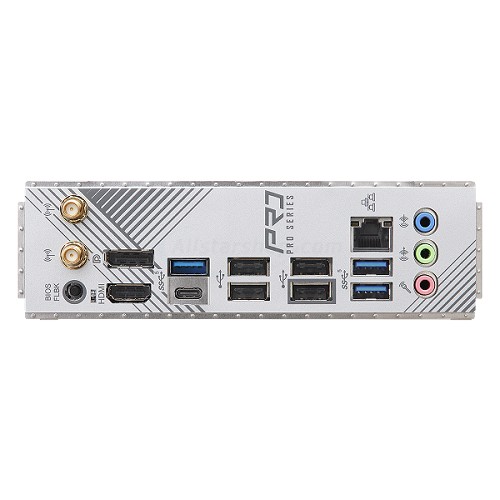

Back Panel I/O

3 x USB 3.2 Gen1 Type-A ports
1 x USB 3.2 Gen1 Type-C port
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
2 x Antenna connectors

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 socket, with M key, type 2260/2280 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2260/2280 support PCIe 3.0 x2 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 8111H Gigabit Ethernet

Integrated Wifi

Wi-Fi 6E 802.11a/b/g/n/ac/ax & Bluetooth 5.2

USB

3 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
1 x USB 3.2 Gen1 Type-C port on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port via header
4 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Asrock
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
Technical Support: Asrock (909) 590-8308
