Aten VS0104 4-Port VGA Splitter with Audio

SKU:

541-03401

Max resolution: 1920 x 1440
Supports: VGA / SVGA / UXGA / WUXGA / Multisync
Plug-and-Play

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

What's New

: StarTech 8K 60Hz HBR3 HDR DisplayPort 1.4 Cable - 10ft

: StarTech 8K 60Hz HBR3 HDR DisplayPort 1.4 Cable - 3.3ft

: C2G USB-C TO HDMI Video Adapter - 8K 60HZ

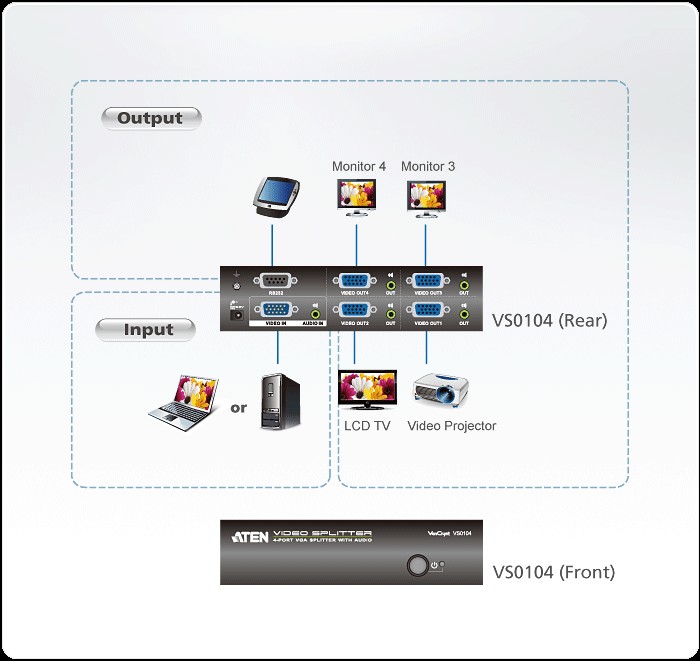

The ATEN VS0104 4-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to four output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.

Furthermore, for complete systems integration, serial control is standard through the VS0104 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.

The VS0104 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 64 video displays while sustaining the highest quality possible.

Description

Specifications

Technical Information

Maximum Frequency

450 MHz

Interfaces/Ports

Audio Line In

Yes

Audio Line Out

Yes

Serial Port

Yes

VGA In

Yes

VGA Out

Yes

Number of Audio Line In

Number of Audio Line Out

Number of VGA Inputs

Number of VGA Outputs

Power Description

Input Voltage

5.3 V DC

Physical Characteristics

Height

1.7"

Length

7.9"

Weight (Approximate)

1.50 lb

Miscellaneous

Additional information

One video input to 4 video outputs
Superior video quality - up to 1920 x 1440 @ 60Hz
Supports up to 450MHz bandwidth for high performance video
Long distance transmission - up to 210 feet (65m) *
Supports VGA, SVGA, UXGA, WUXGA, and multisync
EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
Expandable - provides up to 64 video displays
Features RS-232 serial port for command controls **
RS-232 chain control - use RS-232 commands to control cascaded devices via VGA cable
Supports stereo audio
Plug-and-play - no software installation required
Housing: Metal

Green Compliant

Yes

Green Compliance Certificate/Authority

WEEE

RoHS

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: ATEN
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact ATEN at (949) 428-1111
Technical Support: ATEN (888) 999-2836 or visit ATEN technical support online.

Package Contents

4-Port VGA Splitter with Audio
1 x Power Adapter
1 x User Instructions
