SKU: 540-34014B
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Enclosure Type
External - 1U
Depth
6.3 in
Height
1.7 in
Weight
4.2 lbs
Networking
Ports Qty
8
Connectivity Technology
Wired
Status Indicators
Port status, power
Features
Firmware upgradable
KVM
Keyboard / Mouse Interface
PS/2, USB
KVM Local Users Qty
1 local user
Max Resolution
2048 x 1536
Expansion / Connectivity
Interfaces
8 x keyboard / video / mouse (KVM) - 15 pin SPHD female
1 x management - RJ-11 female
Connections
1 x keyboard / mouse / video / USB - 18 pin SPHD male - 1
Miscellaneous
Cables Included
1 x remote control cable
2 x keyboard / mouse / video cable - 4 ft
4 x keyboard / mouse / video cable - 6 ft
2 x keyboard / mouse / video cable - 10 ft
Rack Mounting Kit
Included
Compliant Standards
CE, DDC-2B, RoHS, WEEE, FCC Part 15 A
Power
Power Device
Power adapter - external
Power Consumption Operational
5 Watt
Software / System Requirements
OS Required
SunSoft Solaris, Apple MacOS, Linux, Microsoft Windows Vista / 2000 / XP
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
0 - 80%

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: ATEN
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact ATEN at (949) 428-1111
  • Technical Support: ATEN (888) 999-2836 or visit ATEN technical support online.

Package Contents

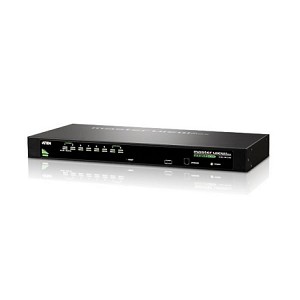

  • CS1308KIT KVM Switch
  • 1 x Console Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Foot Pad Set (4 Pads)
  • 1 x Power Adapter (AC Models)
  • 1 x User Manual
  • 1 x Quick Start Guide

  • 2 x 4 ft. USB KVM Cable
  • 4 x 6 ft. USB KVM Cable

  • 2 x 10 ft. USB KVM Cable
