ATEN 2L5301U 2L-5301U All-in-One Bonded KVM USB Cable

ATEN 2L-5301U All-in-One Bonded KVM USB Cable - 4ft

Support: (888) 999-2836

ATEN 2L-5301U All-in-One Bonded KVM USB Cable - 4ft

SKU:

A318103

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

What's New

: StarTech 8K 60Hz HBR3 HDR DisplayPort 1.4 Cable - 10ft

: StarTech 8K 60Hz HBR3 HDR DisplayPort 1.4 Cable - 3.3ft

: C2G USB-C TO HDMI Video Adapter - 8K 60HZ

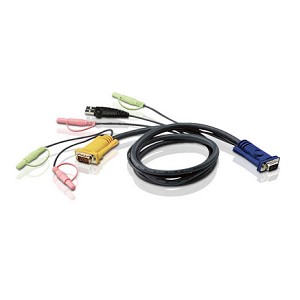

All-in-one bonded KVM USB Cable with Audio.

This all-in-one bonded KVM cables is designed to deliver superb video quality and error-free transmission for your high-resolution applications
The custom-designed DB15 connector combines keyboard, mouse, and video connections in one to save space on the KVM switch, and allows 16 ports on a 1U high space
The thin, flexible cable and the over-sized thumbscrews also make installation quick and easy
Innovative technology featured in this cable minimizes cross-talk and delivers superb video quality for your high resolution applications
Uses UL-rated materials used to ensure safety, corrosion resistance, and cable longevity

Compatibility

Aten Technologies KVM Switch - CS1732, CS1734, CS-1732A, CS-1734A, CS-1754, CS-1758

Certifications & Standards

Description

All-in-one bonded KVM USB Cable with Audio.

This all-in-one bonded KVM cables is designed to deliver superb video quality and error-free transmission for your high-resolution applications
The custom-designed DB15 connector combines keyboard, mouse, and video connections in one to save space on the KVM switch, and allows 16 ports on a 1U high space
The thin, flexible cable and the over-sized thumbscrews also make installation quick and easy
Innovative technology featured in this cable minimizes cross-talk and delivers superb video quality for your high resolution applications
Uses UL-rated materials used to ensure safety, corrosion resistance, and cable longevity

Compatibility

Aten Technologies KVM Switch - CS1732, CS1734, CS-1732A, CS-1734A, CS-1754, CS-1758

Certifications & Standards

Specifications

Cable Length

3.94ft

Number of Connectors

Connector Details

1 x 15-pin D-Sub (HD-15) Male

1 x 4-pin Type A Male USB

2 x 3.5mm Male

1 x 15-pin SPDB-15 Male

2 x 3.5mm Female

Connectors

1 x D-Sub (HD-15)

1 x Type A

2 x 3.5mm

1 x SPDB-15

2 x 3.5mm

Conductor

Copper

Insulation

Aluminum shield

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: ATEN
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact ATEN at (949) 428-1111
Technical Support: ATEN (888) 999-2836 or visit ATEN technical support online.

Package Contents

ATEN 2L-5301U All-in-One Bonded KVM USB Cable - 4ft

ATEN 2L-5301U All-in-One Bonded KVM USB Cable - 4ft

ATEN 2L-5301U All-in-One Bonded KVM USB Cable - 4ft
