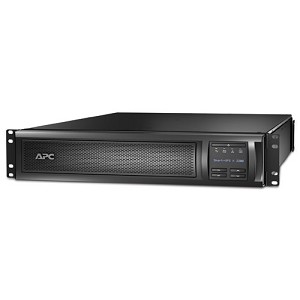

SKU: 995-02043
  • 2200 VA / 1980 W
  • Full Load: 10 min. / Half Load: 25 min.
  • 6 x NEMA 5-15R / 2 x NEMA 5-20R receptacles
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Warranty
Standard Warranty
3 Year
General Information
Manufacturer
American Power Conversion Corp
Manufacturer Part Number
SMX2200RMLV2U
Manufacturer Website Address
Brand Name
APC
Product Line
Smart-UPS
Product Series
X
Product Model
SMX2200RMLV2U
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA L5-30P
Receptacles
6 x NEMA 5-15R
Switching Time
4 ms
Power Description
Load Capacity
2.20 kVA/1.98 kW
Input Voltage
110 V AC
Input Voltage Range
120 V AC Nominal
Output Voltage
120 V AC Nominal
Frequency
60 Hz Input
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time
Management
Overload Protection

Resettable circuit breakers

Emergency Power OFF
Yes
Interfaces/Ports
Interfaces/Ports
USB
Modular Slots
1 x SmartSlot
Battery Information
Batteries
Maintenance Free, Sealed, Spill Proof Lead Acid User-replaceable Hot-swappable
Backup/Run Time
0.17 Hour 1.98 kW Full Load
Battery Recharge Time
3 Hour Typical
Physical Characteristics
Form Factor
2U Rack-mountable
Dimensions
3.36" Height x 17" Width x 26.26" Depth
Weight (Approximate)
85 lb
Miscellaneous
Certifications & Standards
  • BSMI
  • CSA
  • EN 50091-2
  • EN 55022 Class A
  • FCC Part 15 Class A
  • NOM
  • TUV
  • UL 1778
  • VCCI Class A
  • UL 1449
  • Green Compliance
    Yes
    Green Compliance Certificate/Authority
    RoHS

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

    • Smart-UPS X SMX2200RMLV2U 2200 VA Rack-mountable UPS
    • CD with Software
    • Documentation CD
    • Installation Guide
    • Rack Mounting Brackets
    • Rack Mounting Hardware
    • Rack Mounting Support Rails
    • Removable Support Feet
    • Smart UPS Signaling RS-232 Cable
    • USB Cable
