Zalman CNPS12X CPU Cooler - (Discontinued)

SKU:

960-23542

Supports Intel LGA 2011/1366/1156/1155/1151/1150/775
Supports AMD Sockets FM2/FM1/AM3+/AM3/AM2+/AM2
Heatsink Dimensions: 151(L) x 132(W) x 154(H)mm
Fan Speed: 950 ~ 1,200rpm ± 10%
Fan Noise: 24dBA ± 10%

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: MSI GeForce RTX 3050 LP 6G OC PCIe 4.0 Video Card

: Asus Dual GeForce RTX 3050 OC 6GB PCIe 4.0 Video Card

: Asus NUC 14 Pro Core Ultra 7-155H Computing Kit with power cord

Powerful Cooling Performance
Optimally designed aluminum fins disperse heat away from the CPU via 6 of high performance heatpipes by utilizing I.H.D technology, while the high capacity 120mm Triple fans quickly cools the heatsink for stable operation of high performance CPUs.

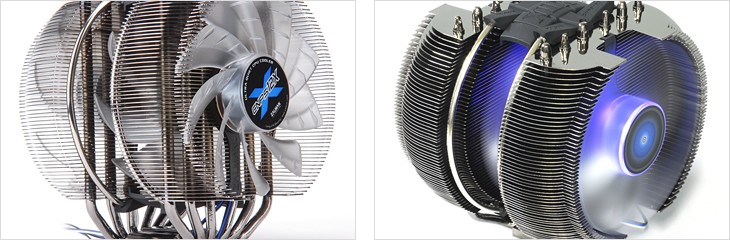

Ultra Quiet Triple Blue LED FAN
Switching noise eliminated 120mm Triple Fans incorporated for ultra quiet operation and blue LEDs for cool aesthetics.

¦ fSwitching noisef is the high frequency harmonic noise that can result from voltage regulation.

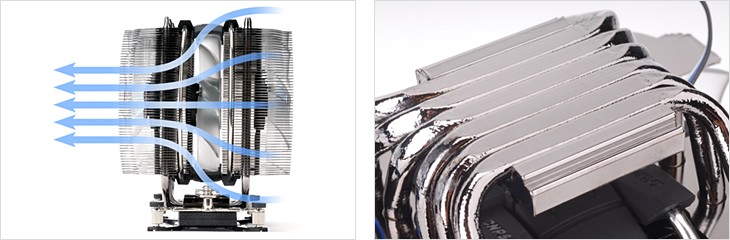

VFP Dual Heatsink
Optimized dual heatsink, applying V.F.P(Variable Fin Profile) technology, maximized it¡¯s performance through dual air-intake structure that increase Air Flow.

¡Ø Radiator Surface Area : 9,635 §²
¡Ø Noise : 22dBA ¡¾10% (with RC5)

W-DTH Base applied
As applying W-DTH(Whole-Direct Touch Heatpipes) technology, heatpipes in the Base Cover touch the CPU directly and transfer the CPU¡¯s heat directly to heatpipes, thereby minimizing heat resistance and maximizing cooling performance in a short time.

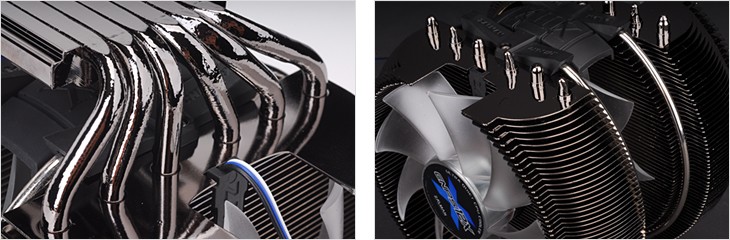

Composite Heatpipe applied
By utilizing Composite Heatpipes, the heat transfer capacity enhanced by 50% compared to the ordinary Sintered-type Heatpipes.

¡Ø Composite Heatpipe : Featuring a ¡¯Sintered Metal¡¯ type wick, resulting in outstanding capillary pumping performance, and a high thermal conductive design of ¡¯Axial Grooves¡¯ which increases the heat transfer rate.

Black-Pearl Nickel Plating
The entire heatsink of CNPS12X is plated with ¡¯Black-Pearl¡¯ Nickel for a long-term corrosion resistance, while the deep ¡°Black-Pearl¡± tone along with the high intensity Blue LEDs reinforce its powerful aesthetics.

Versatile Compatibility
CNPS12X accommodates a broad range of sockets including Intel's upcoming socket LGA2011 as well as AMD's sockets.

LGA2011/1366/1156/1155/775
FM1/AM3+/AM3/AM2+/AM2

Moreover, thanks to highly optimized heatsink design, CNPS12X is able to be compatible with a Mid -Tower Case with its width is 180mm or wider.

High Performance Super Thermal Grease ZM-STG2
The included all new high performance thermal grease ZM-STG2 maximizes heat transfer from the CPU to the base of CNPS12X for intensified cooling performance.

Description

Specifications

General Information

Manufacturer

Zalman Tech Co., LTD

Manufacturer Part Number

CNPS12X

Manufacturer Website Address

www.zalmanusa.com

Brand Name

Zalman

Product Model

CNPS12X

Product Type

Cooling Fan/Heatsink

Fan Information

Number of Fans

Fan Bearing Type

Long Life Bearing

Fan Speed

3 x 1200 rpm

Heatsink Information

Mount Type

Clip Mount

Number of Heat Pipes

Compatible Processor Socket

Socket AM2+ PGA-940

Socket AM3+

Socket FM1

Socket AM3 PGA-941

Socket T LGA-775

Socket R LGA-2011

Socket H LGA-1156

Socket AM2 PGA-940

Socket H2 LGA-1155

Socket B LGA-1366

Power Description

Input Voltage

12 V DC

Physical Characteristics

Material

Aluminum

Copper

Form Factor

Internal

Fan Diameter

3 x 4.72"

Height

6.1"

Depth

5.9"

Weight (Approximate)

2.20 lb

Miscellaneous

Compatibility

Intel Processors:

Core i7 Extreme
Core i7
Core i5
Core i3
Core 2 Quad
Core 2 Duo
Core 2 Extreme
Pentium Dual Core
Pentium D
Pentium 4
Celeron D

AMD Processors:

LIano
Zambezi
Phenom II
Athlon II
Phenom
Athlon FX
Athlon X2
Athlon
Sempron
Dual-Core Opteron
Opteron

Application/Usage

Processor

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: ZALMAN
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact ZALMAN at (714) 693-8880
Technical Support: ZALMAN (714) 693-8880

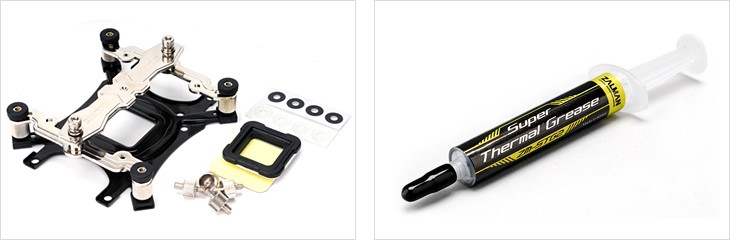

Package Contents

CNPS12X Cooling Fan/Heatsink
Cooler
Backplate
Clip Support
Clip
Wrench
Thermal Grease (ZM-STG2)
Nuts & Nut (Slide) Caps
Nipples A
Fixing Nuts
Resistor (RC5)
Loading Block
Double-Sided Tape
Bolts
User's Manual
Nipples B
Intel Washers
AMD Washers
