SKU: 995-12561
  • 3000VA / 2700W
  • Full Load: 4.1 min
  • Half Load: 11.3 min
  • 2 Independent switched 4 outlet load banks
  • Input connector: L5-30P
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
SU3000RTXLCD2U
Manufacturer Website Address
Brand Name
Tripp Lite
Product Line
SmartOnline
Product Model
SU3000RTXLCD2U
Product Type
Dual Conversion Online UPS
Technical Information
Plug/Connector Type
NEMA L5-30P
Receptacles
  • 1 x NEMA L5-30R
  • 4 x NEMA 5-15/20R
  • 4 x NEMA 5-15R
  • Protection Type
  • Over Voltage
  • Brownout
  • Under Voltage
  • Emergency Power OFF
    Yes
    Cord Length
    10 ft
    Power Description
    Load Capacity (VA)
    3000 VA
    Load Capacity (Watt)
    2700 W
    Input Voltage
    127 V AC
    Output Voltage
    127 V AC
    Waveform Type
    Pure Sine Wave
    Surge Energy Rating
    570 J
    Circuit Breaker
    Yes
    Management
    Network Management
    SNMP Manageable
    Alarm
  • Remote Shutdown
  • Low Battery
  • Overload
  • Power Failure
  • UPS Fault
  • Controls/Indicators
    Status Indicators
    • 7 Front Panel Leds Indicate Line Power Availability
    • AC to DC Conversion
    • Battery Mode Operation
    • Inverter Mode
    • Eco Mode Operation
    • Bypass Mode Operation
    • AC Output Status
    Interfaces/Ports
    Serial Port
    Yes
    USB
    Yes
    Battery Information
    Battery Chemistry
    Sealed Lead Acid
    Backup/Run Time (Full Load)
    4.10 Minute
    Backup/Run Time (Half Load)
    11.30 Minute
    Battery Life
    6 Year
    Maximum Battery Recharge Time
    3 Hour
    Hot Swappable
    Yes
    Environmental Conditions
    Temperature
    104°F (40°C)
    Sound Emission
    50 dB(A)
    Thermal Dissipation
    801 BTU/h
    Physical Characteristics
    Height
    3.4"
    Depth
    25.5"
    Rack Height
    2U
    Form Factor
    Tower/Rack Mountable
    Weight (Approximate)
    70.50 lb
    Miscellaneous
    Certifications & Standards
    • UL1778
    • CSA
    • FCC Part 15 Category A (EMI)
    Software Included
    PowerAlert UPS Monitoring Software
    Green Compliant
    Yes
    Green Compliance Certificate/Authority
    RoHS

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 2 years
    • Warranty Provider: Tripp Lite
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
    • Technical Support: Tripp Lite (773) 869-1234

    Package Contents

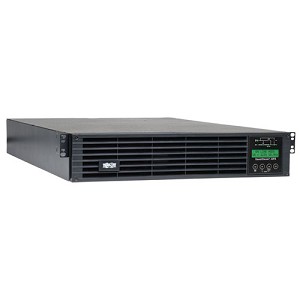

    • SmartOnline SU3000RTXLCD2U 3000VA Tower/Rack Mountable UPS
    • PowerAlert UPS Monitoring Software CD
    • USB Cable
    • DB9 Cable
