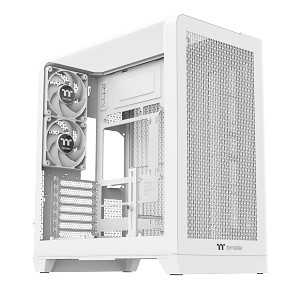

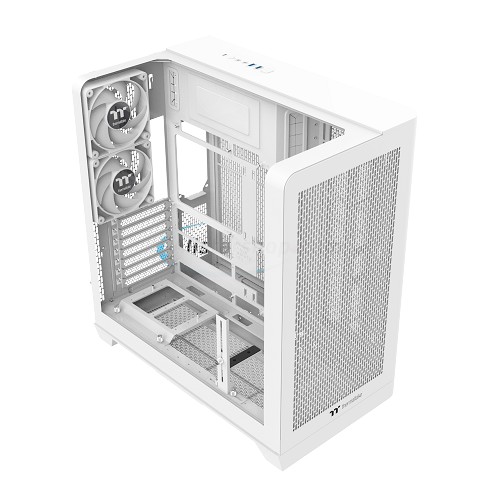

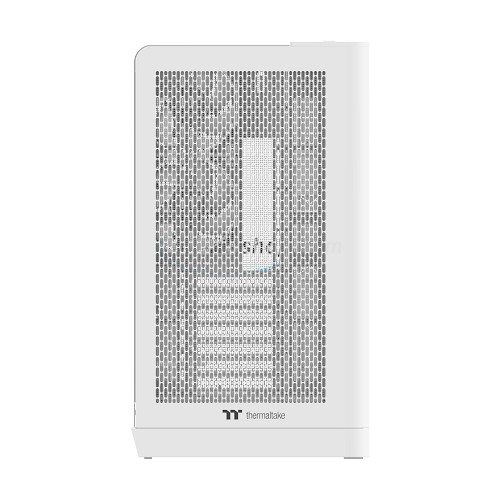

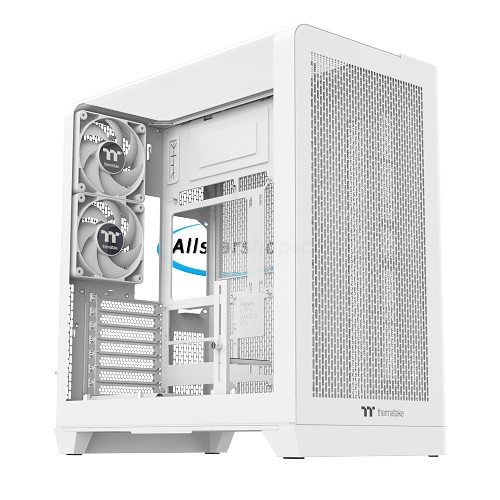

Thermaltake CA-11F-00M6WN-00 View 390 Air Mid Tower Chassis

Thermaltake View 390 Air Mid Tower Chassis - Snow

Support: (800)988-1088

Thermaltake View 390 Air Mid Tower Chassis - Snow

SKU:	990-63041A

Motherboard: Mini-ITX, mATX, ATX
3 drive bays: Int - 2 x 3.5", 1 x 2.5"
Top Panel I/O: 1 x USB-C 3.2 G2, 2 x USB 3.0, Audio & Mic
2 x CT120 exhaust fans installed
Max VGA Card Length: 420mm / Max CPU Cooler Height: 160mm

Our Price:	Login to see price
Availability:	Temporarily out of stock

What's New

: Thermaltake View 290 TG ARGB Mid Tower Chassis - Black

: Thermaltake View 290 TG ARGB Mid Tower Chassis - Snow

: Lian Li LANCOOL 217 Mid-Tower Case with TG Side Panel - Black

The View 390 Air Mid Tower Chassis is an ATX case with a curved tempered glass side/top panel, a perforated front panel, rotational PCI-E slots, a GPU bracket and two CT120 rear fans.

Description

The View 390 Air Mid Tower Chassis is an ATX case with a curved tempered glass side/top panel, a perforated front panel, rotational PCI-E slots, a GPU bracket and two CT120 rear fans.

Specifications

M/B Format

ATX
mATX
Mini-ITX

Int. Bay (s)

2 x 3.5” , 1 x 2.5” or 3 x 2.5”

Cooling Fan (s)

Front: 3 x 120mm / 2 x 140mm / 2 x 200mm
Right: 3 x 120mm
Rear: 2 x 120mm (2 x CT120 120mm 500~2000rpm Pre-installed)
Bottom: 3 x 120mm

Radiator Support

Front Side(AIO): 1 x 360mm / 280mm / 240mm / 140mm / 120mm
Right Side(AIO): 1 x 360mm / 240mm / 120mm

Max GPU Length

420mm without Radiator
390mm with Radiator

Max CPU Cooler Height

160mm

USB Port (s)

1 x USB 3.2 G2 Type-C
2 x USB 3.0

Expansion Slots

7 (Rotatable Patented Design)

Dimensions

19.80" x 11.30" x 19.1"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Thermaltake
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Thermaltake at (800)988-1088 Or visit Thermaltake customer service online.
Technical Support: Thermaltake (800)988-1088 or visit Thermaltake technical support online.
