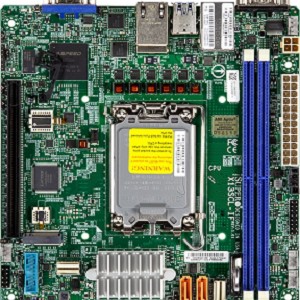

Supermicro MBD-X13SCL-IF X13SCL-IF C262 LGA1700 Mini-ITX motherboard

Supermicro X13SCL-IF C262 LGA1700 Mini-ITX motherboard

Support: (408) 503-8000

Supermicro X13SCL-IF C262 LGA1700 Mini-ITX motherboard

SKU:	800-11731E

Max 64GB / 2 Dimm DDR5-4800 ECC UDIMM
6x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
Up to 4x USB 3.2 G1, 2x USB 2.0
1x PCIe 5.0 x16

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: Intel Xeon 6315P 4C/4T 2.8 GHz w/ 12M LGA16A CPU (Tray)

: Intel Xeon 6325P 4C/8T 3.5 GHz w/ 12M LGA16A CPU (Tray)

: Intel Xeon 6333P 6C/12T 3.1 GHz w/ 18M LGA16A CPU

The Supermicro X13SCL-IF motherboard supports an Intel Xeon 6300-series / E-2400 processor, 64GB DDR5 ECC UDIMM memory, up to 6 SATA 3.0, and M.2. It designed for entry level micro server.

Description

The Supermicro X13SCL-IF motherboard supports an Intel Xeon 6300-series / E-2400 processor, 64GB DDR5 ECC UDIMM memory, up to 6 SATA 3.0, and M.2. It designed for entry level micro server.

Specifications

CPU Support

Intel Xeon 6300 series / E-2400 series processor

Number of Processor (s)

Single (Not Included)

Chipset

Intel C262

System Bios

AMI 32MB AMI UEFI

Number of Memory Slots

Type of Memory Supported

DDR5 ECC UDIMM

Maximum RAM

64GB

Back Panel I/O

2 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0
1 x VGA
2 x RJ45 LAN
1 x RJ45 Dedicated IPMI LAN
1 x Serial port

Number of PCI/PCI Express Slots

1 x PCIe 5.0 x16

Integrated SATA/SAS

2 x SATA
4 x SATA via Slim SAS

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

# of M.2 Ports

1 x M.2 with M key, type 2280 supports PCIe 4.0 x4 mode

Integrated Audio

N/A

Integrated Video

Aspeed AST2600

Integrated LAN

Dual Intel i210 Gigabit Ethernet
Dedicated LAN for IPMI

IPMI

ASPEED AST2600 BMC

USB

2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
2 x USB 2.0 on Back Panel I/O

Serial/Parallel Ports

1 x Serial port on Back Panel I/O

Form Factor

Mini-ITX

Dimensions

6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
