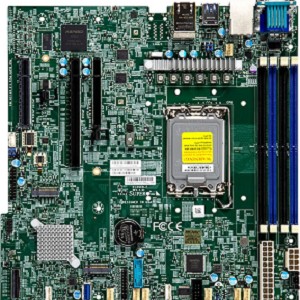

SKU: 800-11717F
  • Max 128GB / 4 Dimm DDR5-4800 ECC UDIMM
  • 8x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • Up to 5x USB 3.2 G1, 6x USB 2.0
  • 1x PCIe 5.0 x16, 2x PCIe 4.0 x8
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
Intel Xeon 6300 series / E-2400 series processor
Number of Processor (s)
Single (Not Included)
Chipset
Intel C266
System Bios
AMI 32MB AMI UEFI
Number of Memory Slots
4
Type of Memory Supported
DDR5 ECC UDIMM
Maximum RAM
128GB
Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0
  • 1 x VGA
  • 2 x RJ45 LAN
  • 1 x RJ45 Dedicated IPMI LAN
  • 1 x Serial port
Number of PCI/PCI Express Slots
  • 1 x PCIe 5.0 x16
  • 2 x PCIe 4.0 x8 (Max x4)
Integrated SATA/SAS
8 x SATA via Slimline SAS x8 connector
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
# of M.2 Ports
2 x M.2 with M key, type 2280/22110 support PCIe 4.0 x4 mode
Integrated Audio
N/A
Integrated Video
ASPEED AST2600
Integrated LAN
  • Dual Intel i210 Gigabit Ethernet
  • Dedicated LAN for IPMI
IPMI
ASPEED AST2600 BMC
USB
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 3 x USB 3.2 Gen1 Type-A ports via header
  • 2 x USB 2.0 on Back Panel I/O
  • 4 x USB 2.0 via headers
Serial/Parallel Ports
  • 1 x Serial port on Back Panel I/O
  • 1 x Serial port via header
Form Factor
Micro-ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • Motherboard
  • I/O Shield with EMI Gasket
  • 1x Slimline x8 to 4x SATA Cable

Compatible Accessories

CPU

Intel Xeon 6315P 4C/4T 2.8 GHz w/ 12M LGA16A CPU (Tray)
  • 4x Cores/4x Threads / Max Turbo Frequency: 5.2 GHz
  • Integrated Graphics: No
  • Supported Memory: 2 Channels DDR5-4800 ECC UDIMMs
  • Max PCIe Lanes: 20x PCIe 5.0
  • 55W TDP
Manufacturer: Intel
Mfg P/N: CM8071506036801
Availability: Usually ships with 1-2 business days
Intel Xeon 6325P 4C/8T 3.5 GHz w/ 12M LGA16A CPU (Tray)
  • 4x Cores/8x Threads / Max Turbo Frequency: 5.2 GHz
  • Integrated Graphics: No
  • Supported Memory: 2 Channels DDR5-4800 ECC UDIMMs
  • Max PCIe Lanes: 20x PCIe 5.0
  • 55W TDP
Manufacturer: Intel
Mfg P/N: CM8071506036701
Availability: Usually ships with 1-2 business days
Intel Xeon 6333P 6C/12T 3.1 GHz w/ 18M LGA16A CPU (Tray)
  • 6x Cores/12x Threads / Max Turbo Frequency: 4.6 GHz
  • Integrated Graphics: No
  • Supported Memory: 2 Channels DDR5-4800 ECC UDIMMs
  • Max PCIe Lanes: 20x PCIe 5.0
  • 65W TDP
Manufacturer: Intel
Mfg P/N: CM8071506036601
Availability: Temporarily out of stock
Intel Xeon 6337P 6C/12T 3.5 GHz w/ 18M LGA16A CPU (Tray)
  • 6x Cores/12x Threads / Max Turbo Frequency: 5.3 GHz
  • Integrated Graphics: No
  • Supported Memory: 2 Channels DDR5-4800 ECC UDIMMs
  • Max PCIe Lanes: 20x PCIe 5.0
  • 80W TDP
Manufacturer: Intel
Mfg P/N: CM8071506036501
Availability: Usually ships with 1-2 business days

Memory

Kingston 16GB DDR5-5600 ECC CL46 1Rx8 288-pin UDIMM
  • PC5-44800
  • Single-rank x8
  • ECC UDIMM
Manufacturer: Kingston
Mfg P/N: KSM56E46BS8KM-16HA
Availability: Temporarily out of stock
Kingston 32GB DDR5-5600 ECC CL46 2Rx8 288-pin UDIMM
  • PC5-44800
  • Dual-rank x8
  • ECC UDIMM
Manufacturer: Kingston
Mfg P/N: KSM56E46BD8KM-32HA
Availability: Temporarily out of stock
Micron 16GB DDR5-5600 1Rx8 CL46 ECC UDIMM
  • PC5-44800
  • Single-rank x8
  • ECC UDIMM
Manufacturer: Crucial
Mfg P/N: MTC10C1084S1EC56BR
Availability: Usually ships with 1-2 business days
Micron 32GB DDR5-5600 2Rx8 CL46 ECC UDIMM
  • PC5-44800
  • Dual-rank x8
  • ECC UDIMM
Manufacturer: Crucial
Mfg P/N: MTC20C2085S1EC56BR
Availability: Temporarily out of stock
