Lian Li PC-Q08B Mini Tower Case

Lian Li PC-Q08B Mini Tower Case - (Discontinued)

SKU:

990-17947

Motherboard: Mini-ITX, Mini-DTX
Drive Bays: Ext - 1 x 5.25" / Int - 6 x 3.5", 1 x 2.5"
Front I/O: 2 x USB 3.0, HD Audio
Fans: 1 x 140mm Front / 1 x 120mm Top
Max VGA Card Length: 300mm / Max CPU Cooler Height: 110mm

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: LG 27" 27BA560-B IPS FHD Monitor with Built-in Speakers

: Adaptec HBA 1200-16e 16-Port 24Gb/s SAS/NVMe PCIe 4.0 x8 HBA

: Asus Prime GeForce RTX 5060 Ti 16GB GDDR7 PCIe 5.0 Video Card

Standard PC components
Standard Mini-ITX motherboard, 5.25-inch optical drive, 3.5-inch / 2.5-inch hard drives, standard ATX PS/2 PSU. Easy to upgrade and service.

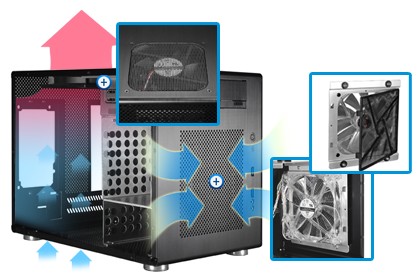

Thermal-Flow
One 140mm LED fan (front) and one 120mm fan (top) keep hot air from damaging your hardware.

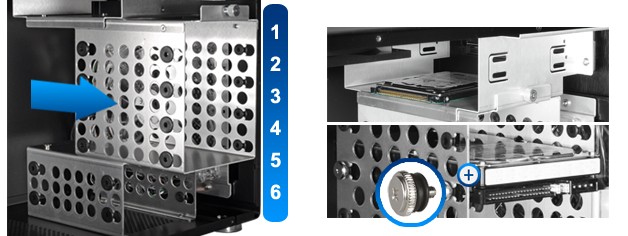

Six 3.5-inch and One 2.5-inch HDDs
The Mini-Q PC-Q08 supports six 3.5-inch and one 2.5-inch HDDs, held in place by thumb screws with rubber suspension.

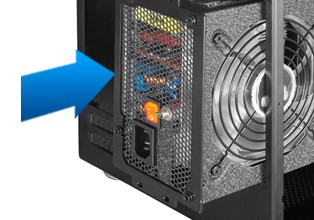

Standard ATX PS/2 PSU
Supports a standard ATX PS/2 PSU with a 120mm cooling fan.

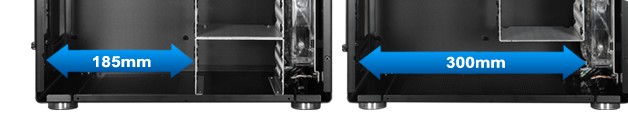

Maximum Video Card Size
300mm (when HDD cage is removed)

Description

Standard PC components
Standard Mini-ITX motherboard, 5.25-inch optical drive, 3.5-inch / 2.5-inch hard drives, standard ATX PS/2 PSU. Easy to upgrade and service.

Thermal-Flow
One 140mm LED fan (front) and one 120mm fan (top) keep hot air from damaging your hardware.

Six 3.5-inch and One 2.5-inch HDDs
The Mini-Q PC-Q08 supports six 3.5-inch and one 2.5-inch HDDs, held in place by thumb screws with rubber suspension.

Standard ATX PS/2 PSU
Supports a standard ATX PS/2 PSU with a 120mm cooling fan.

Maximum Video Card Size
300mm (when HDD cage is removed)

Specifications

M/B Format

Mini-ITX, Mini-DTX

Ext. Bay (s)

1 x 5.25"

Int. Bay (s)

6 x 3.5"

1 x 2.5"

Cooling Fan (s)

Front: 1 x 140mm

Top: 1 x 120mm

Power Supply

ATX

USB Port (s)

2 x USB 3.0

Audio Port

HD Audio

Expansion Slots

Dimensions

345mm x 227mm x 272mm

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Lian Li
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Lian Li at
Technical Support: Lian Li

Package Contents

Lian Li PC-Q08B
