LSI 05-50075-01 Broadcom 9500-8e 8-Port 12Gb/s SAS PCIe 4.0 x8 Host Bus Adapter

Broadcom 9500-8e 8-Port 12Gb/s SAS PCIe 4.0 x8 Host Bus Adapter

SKU:	250-15423A

Broadcom SAS3808
2 x4 SFF-8644 (ext HD)

Our Price:	Login to see price
Availability:	Usually ships same day

What's New

: StarTech 8K 60Hz HBR3 HDR DisplayPort 1.4 Cable - 10ft

: StarTech 8K 60Hz HBR3 HDR DisplayPort 1.4 Cable - 3.3ft

: C2G USB-C TO HDMI Video Adapter - 8K 60HZ

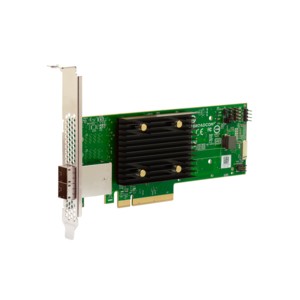

The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host and storage interfaces. With increased bandwidth and IOPS performance compared to previous generations, the 9500-8e adapter delivers the performance and scalability needed by critical applications.

Description

Specifications

Host Interface

PCIe Gen 4.0 x8

Data Transfer Rate

12Gb/s SAS
6Gb/s SATA
Gen 4.0 PCIe (NVMe)

Drive Supported

1024 SAS/SATA devices
32 NVMe devices

Processor

Broadcom SAS3808

Ports

2 x4 SFF-8644 (ext HD)

Dimensions

6.127" x 2.712"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: LSI
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact LSI at 866-574-5741
Technical Support: LSI 866-574-5741

Package Contents

Broadcom 9500-8e HBA
Low Profile Bracket
