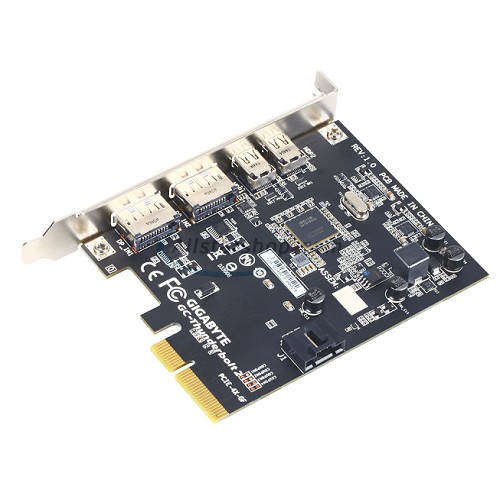

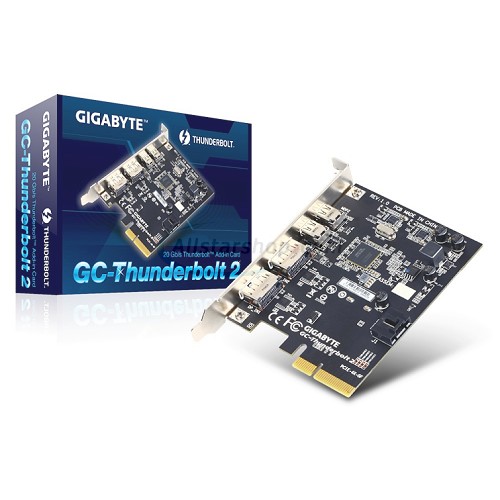

Gigabyte GC-Thunderbolt 2 (Rev. 1.0) Thunderbolt Adapter - (Discontinued)

Support: (626) 854-9338

Gigabyte GC-Thunderbolt 2 (Rev. 1.0) Thunderbolt Adapter - (Discontinued)

SKU:

459-05801

2 x Thunderbolt 2 Ports
20 Gb/s Bi-directional bandwidth
DisplayPort 1.2 Capable with 4K Video
Daisy-chain up to 12 Devices (6 devices per port)

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: MSI B850 Gaming Plus WIFI AMD B850 AM5 ATX Motherboard

: Kingston 16GB DDR5-6400 CL52 Clocked 1Rx8 288-pin CUDIMM

: Kingston 32GB DDR5-6400 CL52 Clocked 2Rx8 288-pin CUDIMM

The Fastest Connection to Your PC Just Got Faster!
The GC-Thunderbolt 2 offers an easy way to upgrade GIGABYTE Thunderbolt ready motherboards with the new and faster Thunderbolt 2 connectivity without having to upgrade to a whole new system.

GC-Thunderbolt 2 card with dual Thunderbolt 2 ports offers:

Dual Thunderbolt 2 Ports

20 Gb/s Bi-directional Bandwidth

DisplayPort 1.2 Capable with 4K Video Throughout

Daisy-chain up to 12 Devices (6 devices per port)

Upgrade Your Motherboard the Easy Way!

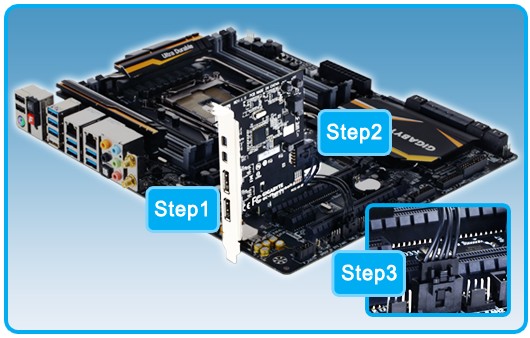

	Step 1: Install the Thunderbolt™ add-in card in the PCIE 2.0 x4 slot. Step 2: Connect one end of the THB_C header cable to the TB Header on the Thunderbolt™ add-in card. Step 3: Connect the other end of the cable to the THB_C header on the motherboard.

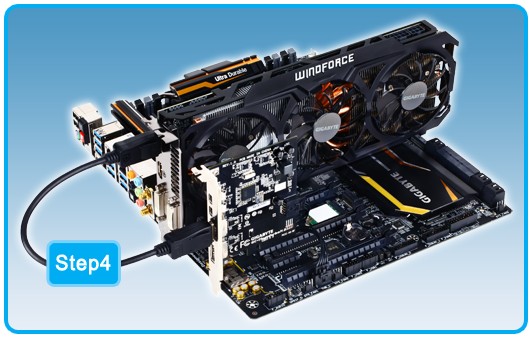

	Step 4: Use the included DisplayPort/Mini DisplayPort cable to connect your graphics card to the Thunderbolt™ add-in card.

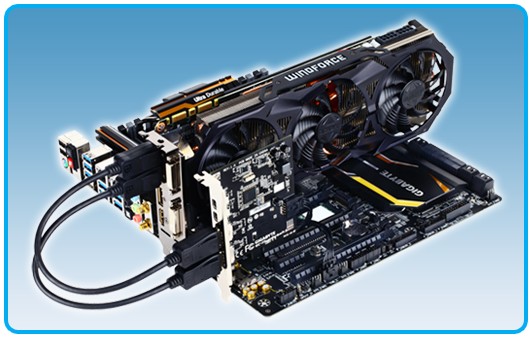

	*To enable both two Thunderbolt™ ports, please connect both display port cables to the graphic card.

Compatible Models

GA-X99-SOC Champion
GA-X99-Gaming 5P
GA-X99-UD4P
GA-X99-UD3P
GA-X99-Gaming G1 WIFI
GA-X99-Gaming 7 WIFI
GA-X99-Gaming 5
GA-X99-SOC Force
GA-X99-UD7 WIFI
GA-X99-UD5 WIFI
GA-X99-UD4
GA-X99-UD3

Description

Dual Thunderbolt 2 Ports

20 Gb/s Bi-directional Bandwidth

DisplayPort 1.2 Capable with 4K Video Throughout

Daisy-chain up to 12 Devices (6 devices per port)

Upgrade Your Motherboard the Easy Way!

	Step 1: Install the Thunderbolt™ add-in card in the PCIE 2.0 x4 slot. Step 2: Connect one end of the THB_C header cable to the TB Header on the Thunderbolt™ add-in card. Step 3: Connect the other end of the cable to the THB_C header on the motherboard.
	Step 4: Use the included DisplayPort/Mini DisplayPort cable to connect your graphics card to the Thunderbolt™ add-in card.
	*To enable both two Thunderbolt™ ports, please connect both display port cables to the graphic card.

Compatible Models

GA-X99-SOC Champion
GA-X99-Gaming 5P
GA-X99-UD4P
GA-X99-UD3P
GA-X99-Gaming G1 WIFI
GA-X99-Gaming 7 WIFI
GA-X99-Gaming 5
GA-X99-SOC Force
GA-X99-UD7 WIFI
GA-X99-UD5 WIFI
GA-X99-UD4
GA-X99-UD3

Specifications

Technical Information

Host Interface

PCI Express 2.0 x4

Interfaces/Ports

Number of Thunderbolt Ports

Physical Characteristics

Form Factor

Plug-in Card

Miscellaneous

Green Compliant

Yes

Green Compliance Certificate/Authority

China RoHS

WEEE

Country of Origin

China

Warranty

Limited Warranty

3 Year

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Gigabyte
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Gigabyte at (626) 854-9338 Or visit Gigabyte customer service online.
Technical Support: Gigabyte (626) 854-9338 or visit Gigabyte technical support online.

Package Contents

Gigabyte GC-Thunderbolt 2 (Rev. 1.0) Thunderbolt Adapter
2 x DisplayPort Cables
1 x Mini DisplayPort Cable
1 x THB-C Header Cable
