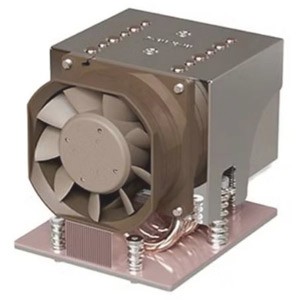

SKU: 960-00K23
  • Supports AMD Socket SP7
  • Aluminum Heatsink with Heatpipe Embedded
  • Supports up to TDP SP7: 600W
  • Recommended for 3U Server and up
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

Socket Type
AMD SP7
Heat Sink Type
Aluminum Fin + Heat pipes + Copper Heat Spreader Embedded Vapor Chamber Heatsink Base
Heatsink Dimension
120 x 103.6 x 110 mm
Fan Dimension
80 x 80 x 38 mm
Fan Speed
  • At Duty Cycle 0~20%: 2400± 200 RPM
  • At Duty Cycle 50%: 4800± 10% RPM
  • At Duty Cycle 100%: 8000±10% RPM
Fan Noise
  • At Duty Cycle 0~20%: 25.63 dBA
  • At Duty Cycle 50%: 47.85 dBA
  • At Duty Cycle 100%: 64.40 dBA
Fan Air Flow
  • At Duty Cycle 0~20%: 32.52 CFM
  • At Duty Cycle 50%: 67.24 CFM
  • At Duty Cycle 100%: 115.61 CFM
Fan Bearing Type
Double Ball
Temp. Sensor
No
Variable Speed Fan
Yes
Connector (s)
4-Pin

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Dynatron
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Dynatron at (510) 498-8888
  • Technical Support: Dynatron (510) 498-8888 or visit Dynatron technical support online.
