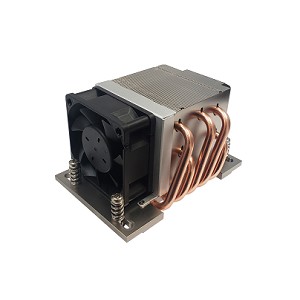

Dynatron A54 2U Active CPU Heat Sink for SP6/TR5

Dynatron Support: (510) 498-8888

Dynatron A54 2U Active CPU Heat Sink for SP6/TR5

SKU:

960-00K19

Supports AMD Socket SP6/sTR5
Aluminum Heatsink with Heatpipe Embedded
Supports up to TDP SP6: 225W / sTR5: 350W
Recommended for 2U Server and up

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

What's New

: Cooler Master Hyper 212 Black LGA1851 CPU Cooler

: Thermaltake ASTRIA 600 ARGB Lighting CPU Cooler

: Thermaltake UX200 SE ARGB Lighting CPU Cooler

Keep your AMD EPYC Processor running cool with the Dynatron A54 2U Active CPU Cooler. Designed specifically for 2U servers and up, it features an aluminum heatsink with heat pipe technology and a 60mm 2 ball bearings fan for superior cooling performance.

Description

Specifications

Socket Type

AMD SP6/TR5

Application

SP6: 225W
sTR5: 350W

Heat Sink Type

Aluminum Heatsink with Heatpipe Embedded

Heatsink Dimension

119.0 x 79.0 x 66.0 mm (L x W x H)

Fan Dimension

60 x 60 x 25 mm

Fan Speed

At Duty Cycle 20%: 2300 ± 10% RPM
At Duty Cycle 50%: 5400 ± 10% RPM
At Duty Cycle 100%: 11000 ± 10% RPM

Fan Noise

At Duty Cycle 0~20%: 25.8 dBA
At Duty Cycle 50%: 44.4 dBA
At Duty Cycle 100%: 59.8 dBA

Fan Air Flow

At Duty Cycle 0~20%: 11.91 CFM
At Duty Cycle 50%: 28.38 CFM
At Duty Cycle 100%: 58.31 CFM

Fan Bearing Type

2 Ball

Temp. Sensor

Variable Speed Fan

Yes

Connector (s)

4-pin PWM

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
