SKU: 800-51038H
  • Max 128GB / 4x DDR4 DIMM / Up to 4600(O.C.)
  • 6x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 2x USB 3.2 G2 (1x USB-C), 6x USB 3.2 G1, 6x USB 2.0
  • 2x PCIe x16, 3x PCIe x1
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
  • AMD AM4 3rd Gen Ryzen processor
  • Not Compatible with AMD Ryzen 5 3400 G and Ryzen 3200 G
Number of Processor (s)
Single (Not Included)
Chipset
AMD B550
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4 4600(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200 / 3000/ 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum RAM
128GB

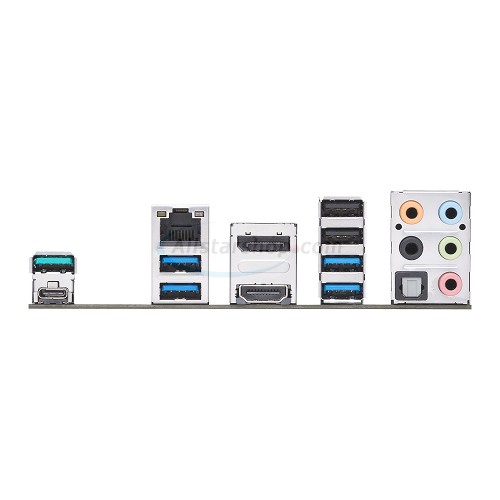

Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB 3.2 Gen2 Type-C port
  • 4 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 3.0 x16 (Max x4)
  • 3 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek RTL8111H Gigabit LAN
USB
  • 1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 2 x USB 2.0 ports on Back Panel I/O
  • 4 x USB 2.0 ports via headers
Serial/Parallel Ports
1 x Serial port via header
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

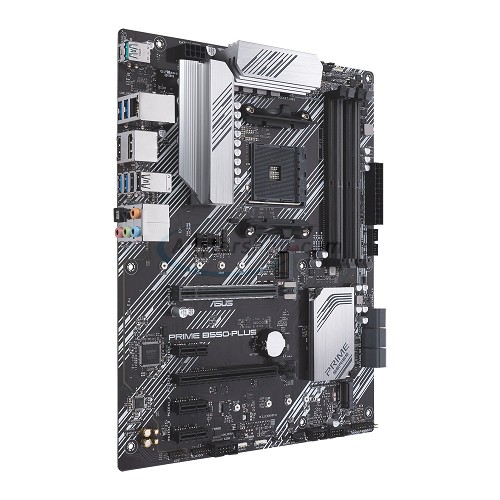

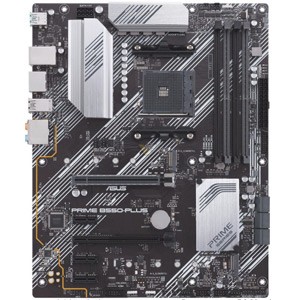

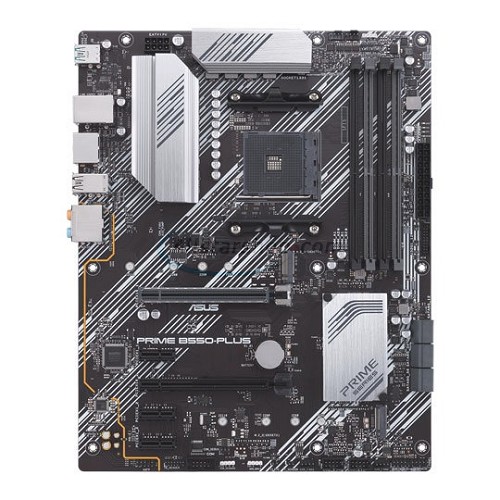

  • Asus Prime B550-PLUS motherboard
  • User's manual
  • Supporting DVD
  • I/O Shield
  • 2 x SATA 6Gb/s cables
  • 1 x M.2 SSD screw package
