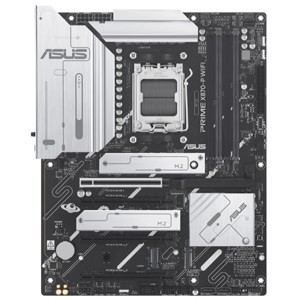

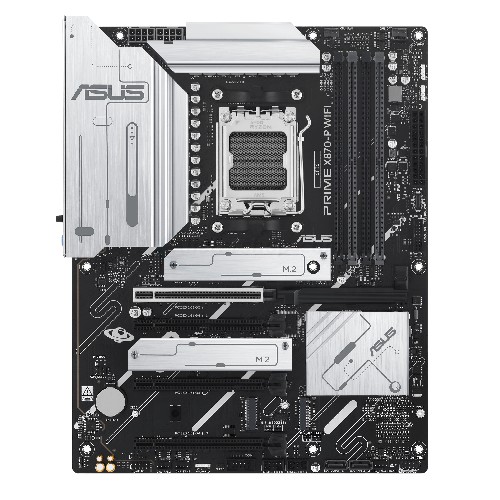

Asus PRIME X870-P WIFI AMD X870 Socket AM5 ATX Motherboard

Support: (812)282-2787

Asus PRIME X870-P WIFI AMD X870 Socket AM5 ATX Motherboard

SKU:	800-51009F

Integrated Radeon Graphics - HDMI, 2x USB-C 4.0
Max 192GB / 4x DDR5 DIMM / Up to 8000+ (O.C.)
2x SATA 6GB/s, 4x M.2 / RAID 0, 1, 10, 5
Up to 2x USB4-C, 2x USB 3.2 G2 (1x USB-C), 5x USB 3.2 G1, 8x USB 2.0
1x PCIe 5.0 x16, 3x PCIe 4.0 x16,

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: AMD Ryzen 5 9600X 6-Core 3.9GHz /6MB cache AM5 CPU (Retail)

: AMD Ryzen 7 9700X 8-Core 3.8GHz /8MB cache AM5 CPU (Retail)

: Kingston 16GB DDR5-5600 CL46 1Rx8 288-pin UDIMM

ASUS PRIME X870-P WIFI motherboard expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Description

Specifications

CPU Support

AMD Ryzen 9000/ 8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD X870

System Bios

UEFI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory

Maximum RAM

192GB

Back Panel I/O

2 x USB4 Type-C ports
1 x USB 3.2 Gen2 Type-A port
3 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi module

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
3 x PCIe 4.0 x16 (x1 electrical)

Integrated SATA/SAS

2 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 with M key, type 2280 supports PCIe 5.0 x4
1 x M.2 with M key, type 2242/2260/2280 supports PCIe 4.0 x4
1 x M.2 with M key, type 2280 supports PCIe 4.0 x4
1 x M.2 with M key, type 2280 supports PCIe 3.0 x2

Integrated SATA/SAS RAID

RAID 0, 1, 10, 5

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 2.5Gb Ethernet

Integrated Wifi

Wi-Fi 7 (802.11be) & Bluetooth v5.4

USB

2 x USB4 Type-C ports on Back Panel I/O
1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port via header
3 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 ports via header
4 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
