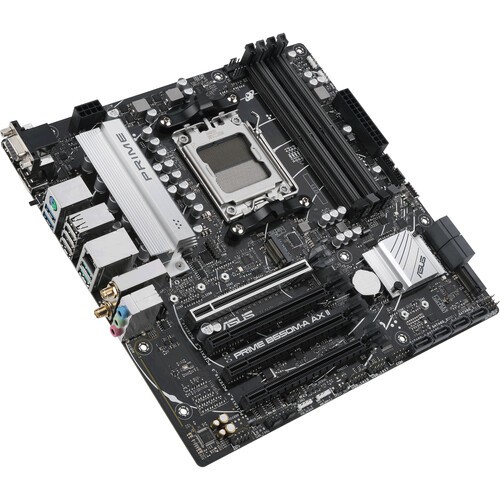

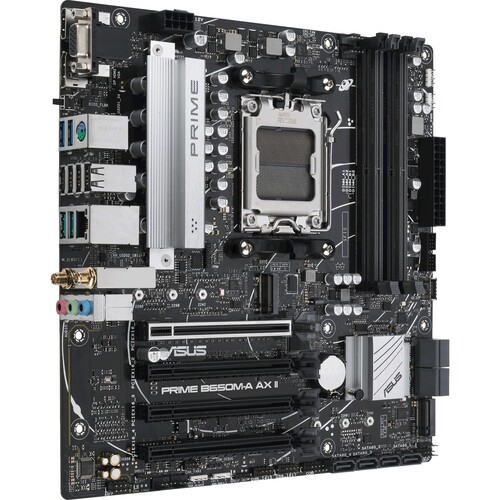

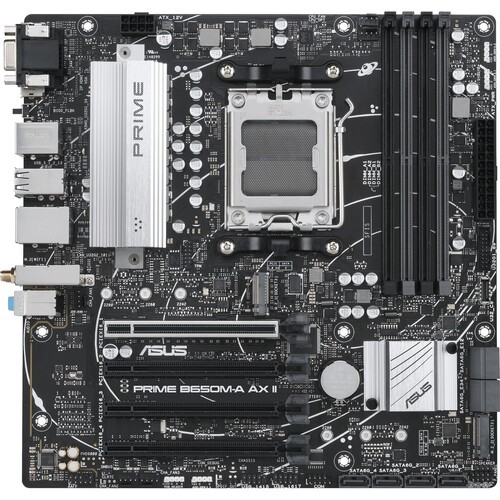

Asus PRIME B650M-A AX II AMD B650 AM5 mATX Motherboard

Support: (812)282-2787

Asus PRIME B650M-A AX II AMD B650 AM5 mATX Motherboard

SKU:	800-51183E

Integrated Radeon Graphics - HDMI / DisplayPort / VGA
Max 192GB / 4x DDR5 DIMM / Up to 7600+ (O.C.)
8x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
2x USB 3.2 G2, 5x USB 3.2 G1 (1x USB-C), 8x USB 2.0
1x PCIe 4.0 x16, 3x PCIe 4.0 x16 (x1)

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: AMD RYZEN 5 7600X 6-Core 4.7GHz /6MB cache AM5 CPU (Retail)

: AMD Ryzen 5 9600X 6-Core 3.9GHz /6MB cache AM5 CPU (Retail)

: AMD Ryzen 7 9700X 8-Core 3.8GHz /8MB cache AM5 CPU (Retail)

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000/8000/7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A AX II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Description

Specifications

CPU Support

AMD Ryzen 9000/8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD B650

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC/non-ECC, Un-buffered Memory

Maximum RAM

192GB

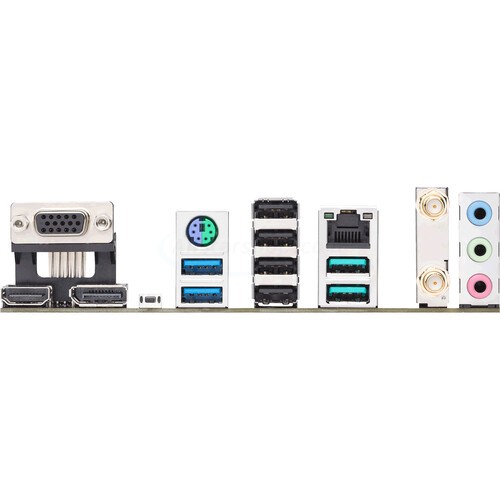

Back Panel I/O

1 x PS/2 Keyboard/Mouse combo port
2 x USB 3.2 Gen2 Type-A ports
2 x USB 3.2 Gen1 Type-A ports
4 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
1 x Wi-Fi Module

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
3 x PCIe 4.0 x16 (electrical x1)

Integrated SATA/SAS

8 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 5.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek 2.5 Gb Ethernet

Integrated Wifi

802.11ax 2x2 Wi-Fi 6 & Bluetooth v5.2

USB

2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port via header
2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
4 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Serial/Parallel Ports

1 x Serial port via header

PS/2 Ports

1 x PS/2 Keyboard/Mouse combo port

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
