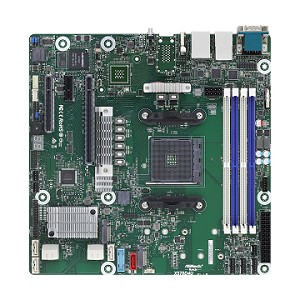

SKU: 800-26583
  • Max 128GB / 4x DDR4 DIMM / Up to 3200
  • 8x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • 1x PCIe x16, 1x PCIe x8, 1x PCIe x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
AMD AM4 3rd and 2nd Gen Ryzen processor
Number of Processor (s)
Single (Not Included)
Chipset
AMD X570
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4-3200 ECC and non-ECC UDIMM
Maximum RAM
128GB
Back Panel I/O
  • 2 x USB 3.1 Gen2 ports
  • 1 x HDMI
  • 1 x VGA
  • 1 x Serial port
  • 2 x RJ45 GbE LAN
  • 1 x RJ45 Management LAN
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x8
  • 1 x PCIe 4.0 x1
Integrated SATA/SAS
8 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support SATA and up to PCIe 4.0 x4
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support SATA and up to PCIe 4.0 x4
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Video
ASPEED AST2500
Integrated LAN
  • 2 x RJ45 GbE via Intel i210
  • Realtek RTL8211E for dedicated management LAN
Serial/Parallel Ports
1 x Serial port on Back Panel I/O
Form Factor
Micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308
