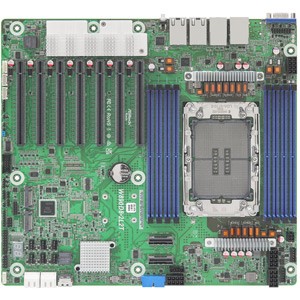

SKU: 800-26587A
  • Integrated Graphics - VGA
  • Max 1TB / 8 DIMM DDR5-6400 ECC RDIMM
  • 4x SATA 6Gb/s, 2x M.2
  • Up to 4x USB 3.1 G1
  • 7x PCIe 5.0 x16
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
Intel Socket LGA4710-2 Xeon 600
Number of Processor (s)
Single (Not Included)
Chipset
Intel W890
System Bios
AMI UEFI
Number of Memory Slots
8
Type of Memory Supported
DDR5 RDIMM
Maximum RAM
1TB
Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports
  • 1 x VGA
  • 2 x RJ45 10 GbE
  • 2 x RJ45 1 GbE
  • 1 x RJ45 Dedicated IPMI
Number of PCI/PCI Express Slots
7 x PCIe5.0 / CXL2.0 x16
Integrated SATA/SAS
4 x SATA via MCIO PCIe 4.0 x4
# of M.2 Ports
2 x M.2 socket, with M key, type 2280/22110 support PCIe 4.0 x4 mode
Integrated Video
ASPEED AST2600
Integrated LAN
  • Intel E610 10GbE
  • Intel i210 1GbE
  • Realtek RTL8211F
IPMI
ASPEED AST2600
USB
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
Serial/Parallel Ports
1 x Serial port via header
Form Factor
CBE-like
Dimensions
12" x 10.9"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Compatible Accessories

CPU

Intel Xeon 636 12-Core 3.5GHz w/48MB LGA4710 CPU-2 (Tray)
  • 12 Cores / 24 Threads / Max Turbo Boost: 4.7 GHz
  • Supported Memory: DDR5-6400
  • Max # of PCIe 5.0 Lane: 80
  • TDP: 170W
Manufacturer: Intel
Mfg P/N: PK8072007104400
Availability: Usually ships with 1-2 business days
Intel Xeon 638 16-Core 3.2GHz w/72MB LGA4710-2 CPU (Tray)
  • 16 Cores / 32 Threads / Max Turbo Boost: 4.8 GHz
  • Supported Memory: DDR5-6400
  • Max # of PCIe 5.0 Lane: 80
  • TDP: 180W
Manufacturer: Intel
Mfg P/N: PK8072007104500
Availability: Usually ships with 1-2 business days
Intel Xeon 654 18-Core 3.1GHz w/72MB LGA4710-2 CPU (Tray)
  • 18 Cores / 36 Threads / Max Turbo Boost: 4.8 GHz
  • Supported Memory: DDR5-6400
  • Max # of PCIe 5.0 Lane: 128
  • TDP: 200W
Manufacturer: Intel
Mfg P/N: PK8072007104600
Availability: Usually ships with 1-2 business days

Memory

Kingston 16GB DDR5-5600 ECC Reg CL46 1Rx8 288-pin RDIMM
Manufacturer: Kingston
Mfg P/N: KSM56R46BS8-16HA
Availability: Temporarily out of stock
Kingston 32GB DDR5-5600 ECC Reg CL46 2Rx8 288-pin RDIMM
  • PC5-5600
  • 2R x8
  • x80 ECC RDIMM
Manufacturer: Kingston
Mfg P/N: KSM56R46BD8PMI-32HAI
Availability: Temporarily out of stock
Kingston 64GB DDR5-5600 ECC Reg CL46 2Rx4 288-pin RDIMM
  • PC5-5600
  • 2R x4
  • x80 ECC RDIMM
Manufacturer: Kingston
Mfg P/N: KSM56R46BD4PMI-64HAI
Availability: Temporarily out of stock
