SKU: 800-26590
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 128GB / 4x DDR4 DIMM / Up to 4800+(O.C.)
  • 4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • 2x USB 3.2 G2, 9x USB 3.2 G1 (1x USB-C, 4x USB 2.0)
  • 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 1x PCIe x1
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel H670 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4-4800(O.C) / 4700(O.C) / 4600(O.C) / 4500(O.C) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
128GB

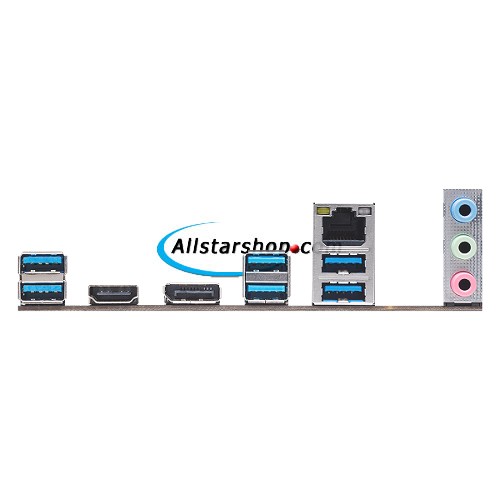

Back Panel I/O
  • 2 x USB 3.2 Gen2 Type-A ports
  • 4 x USB 3.2 Gen1 Type-A ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ-45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 3.0 x16 (max x4)
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2242/2280 support PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2280 support PCIe 4.0 x4 & SATA mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel I219V Gigabit Ethernet
USB
  • 2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports via header
  • 1 x USB 3.2 Gen1 Type-C port via header
  • 4 x USB 2.0 via headers
Form Factor
Micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Allstarshop.com
  • Service Contact: Allstarshop On-line RMA Request.
  • Technical Support: Asrock (909) 590-8308

Package Contents

  • H670M Pro RS motherboard
  • User's Manual
  • Supporting CD
  • 1 x I/O Shield
  • 2 x SATA cables
  • 3 x Screws for M.2
  • 1 x Standoff for M.2
