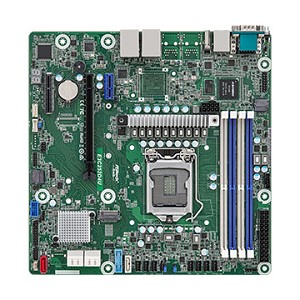

SKU: 800-26513F
  • Integrated Graphics - VGA / HDMI
  • Max 128GB / 4 Dimm DDR4 3200 ECC UDIMM
  • 6x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
  • Up to 6x USB 3.2 G1, 2x USB 2.0
  • 1x PCIe x16, 1x PCIe x4, 1x PCIe x1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
Intel Xeon E-2300 Processor & 10th Gen Intel Pentium Processor
Number of Processor (s)
Single (Not Included)
Chipset
Intel C252
System Bios
AMI UEFI
Number of Memory Slots
4
Type of Memory Supported
DDR4-3200/2933/2666MHz ECC UDIMM
Maximum RAM
128GB
Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports
  • 1 x HDMI
  • 1 x VGA port
  • 2 x RJ45 LAN
  • 1 x Dedicated IPMI LAN
  • 1 x Serial port
Number of PCI/PCI Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
Integrated SATA/SAS RAID
RAID 0 ,1, 5, 10
# of M.2 Ports
1 x M.2 socket, with M key, type 2260/2280/22110 support PCIe 3.0 x2 or SATA mode
Integrated Video
  • ASPEED AST2500
  • Integrated Intel Graphics from processor
Integrated LAN
  • 2 x Intel I210 Gigabit LAN
  • 1 x IPMI Dedicated LAN
IPMI
ASPEED AST2500
USB
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 2 x USB 2.0 via header
Serial/Parallel Ports
1 x Serial port on Back Panel I/O
Form Factor
Micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Compatible Accessories

CPU

Intel Xeon E-2336 6-Core 2.9GHz LGA1200 w/12MB cache CPU (BOX)
  • 6x Cores/ 12x Threads / Turbo Boost: 4.8 GHz
  • TDP: 65 W
  • 20x PCIe 4.0 Lanes
  • Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX80708E2336
Availability: Temporarily out of stock
Intel Xeon E-2378G 8-Core 2.8GHz LGA1200 w/16MB cache CPU (BOX)
  • 8x Cores/ 16x Threads / Turbo Boost: 5.1 GHz
  • Intel UHD Graphics P750: 350MHz / 1300 MHz
  • TDP: 80 W
  • 20x PCIe 4.0 Lanes
  • Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX80708E2378G
Availability: Temporarily out of stock
