SKU: 800-26572C
  • Integrated Intel Graphics - HDMI, DisplayPort
  • Max 128GB / 2x DDR5 DIMM / Up to 9066+ (O.C.)
  • 4x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10, 5
  • Up to 1x USB 3.2 G2 (USB-C), 6x USB 3.2 G1 (1x USB-C), 6x USB 2.0
  • 1x PCIe 4.0 x16, 1x PCIe 4.0 x4, 1x PCIe 4.0 x1
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
LGA1851 socket for Intel Core Ultra Processors (Series 2)
Number of Processor (s)
Single (Not Included)
Chipset
Intel B860 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0 x16
Number of Memory Slots
2
Type of Memory Supported
Up to DDR5-9066(O.C)+ Non-ECC, Un-buffered Memory
Maximum RAM
128GB
Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port
  • 3 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
  • 1 x PCIe 4.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 with M key, type 2260/2280 supports PCIe 5.0 x4 mode
  • 1 x M.2 with M key, type 2230/2242/2260/2280 supports PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 10, 5
Integrated Audio
Realtek ALC897 7.1 CH HD Audio Codec
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Dragon RTL8125BG 2.5Gb Ethernet
USB
  • 1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
  • 3 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-C port via header
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 2 x USB 2.0 ports on Back Panel I/O
  • 4 x USB 2.0 ports via headers
Form Factor
Micro ATX
Dimensions
9.6" x 8.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

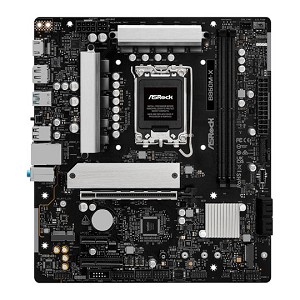

  • ASRock B860M-X motherboard
  • 1 x I/O Shield
  • 2 x SATA Data Cables
  • 2 x Screws for M.2 Socket
  • 1 x Standoff for M.2 Socket
