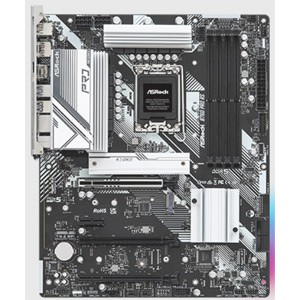

ASRock B760 Pro RS B760 LGA1700 ATX Motherboard

Support: (909) 590-8308

ASRock B760 Pro RS B760 LGA1700 ATX Motherboard

SKU:

800-26600

Integrated Intel Graphics - HDMI / DisplayPort
Max 128GB / 4x DDR5 DIMM / Up to 7200(O.C.)
4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
3x USB 3.2 G2 (2x USB-C), 6x USB 3.2 G1, 4x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 1x PCIe 3.0 x1

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: Intel Core i5-13500 14-Core LGA1700 w/24MB cache CPU (BOX)

: Intel Core i7-13700 16-Core LGA1700 w/30MB cache CPU (BOX)

: Kingston Fury Renegade Silver 16GB DDR5-6800 CL36 288-pin DIMM

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard. Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade. B760 Pro RS, your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel B760 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) /6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory

Maximum RAM

128GB

Back Panel I/O

1 x USB 3.2 Gen2 Type-A port
1 x USB 3.2 Gen2 Type-C port
4 x USB 3.2 Gen1 ports
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCie 5.0 x16
1 x PCIe 1.0 x16 (max x4)
1 x PCIe 3.0 x16 (max x1)
1 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 socket, with M key, type 2260/2280 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2260/2280 supports PCIe 4.0 x2 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek ALC897 7.1 CH HD Audio Codec

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Realtek RTL8125BG 2.5Gb Ethernet

USB

1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port via header
4 x USB 3.2 Gen1 ports on Back Panel I/O
2 x USB 3.2 Gen1 ports via header
2 x USB 2.0 on Back Panel I/O
2 x USB 2.0 via header

Form Factor

ATX

Dimensions

13" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
