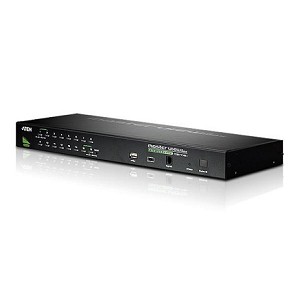

The CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.

• Easy installation - no software required

• Hot pluggable - add or remove computers for maintenance without powering down the switch - port names are automatically reconfigured when the station sequence is changed

• LED Display For Easy Status Monitoring

• Auto Scan feature for monitoring user-selected computers

• Convenient computer selection via Hotkeys and intuitive OSD menus

• OSD is mouse-drive for quick and efficient menu navigation - OSD port list automatically expands when stations are added - OSD Screen automatically adjusts to resolution changes

• OSD or hotkey selection of the OS and keyboard language

• Keyboard and mouse emulation - computers boot even when the console focus is elsewhere

• Two types of logout - manual and timed

• DDC emulation - video settings of each computer is automatically adjusted for optimum output to the monitor

• Backward compatible with the Master View CS-1216A KVM switch series

System Requirement

Console:


• A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation

• A USB mouse

• A USB keyboard




  Computer:



• A VGA, SVGA or Multisync card

• Type A USB port


Compatibility

• Supports: Windows 98 or higher; MAC OS 8.6 or higher, SUN Blade 2000/100 (Solaris 8); Linux Red Hat 7.1 or higher

• Supports Microsoft IntelliMouse and the scrolling wheel on most mice - Supports Logitech and Microsoft wireless keyboards and mice, Multimedia keyboard

Certifications & Standards

• DDC2B
