SKU: 995-02004A
  • 3000 VA / 2700 W
  • Full Load: 6.3 min. / Half Load: 18 min.
  • 3 x NEMA 5-15R / 3 x NEMA 5-20R / 1 x NEMA L5-30R
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Technical Information
Plug/Connector Type
NEMA L5-30P
Receptacles
  • 3 x NEMA 5-15R
  • 1 x NEMA L5-30R
    • Emergency Power OFF
    Yes
    Power Description
    Load Capacity (VA)
    3 kVA
    Load Capacity (Watt)
    2.70 kW
    Input Voltage
    110 V AC
    Output Voltage
    120 V AC
    Management
    Network Management
    SNMP Manageable
    Interfaces/Ports
    Serial Port
    Yes
    USB
    Yes
    Battery Information
    Battery Characteristics
    Spill-proof, Maintenance-free
    Battery Chemistry
    Lead Acid
    Backup/Run Time (Full Load)
    6 Minute
    Backup/Run Time (Half Load)
    18 Minute
    Maximum Battery Recharge Time
    3 Hour
    Hot Swappable
    Yes
    Physical Characteristics
    Height
    3.3"
    Depth
    26.3"
    Rack Height
    2U
    Form Factor
    Rack-mountable
    Weight (Approximate)
    84.77 lb
    Miscellaneous
    Certifications & Standards
    • UL 1449
    • BSMI
    • CSA
    • EN 50091-2
    • EN 55022 Class A
    • FCC Part 15 Class A
    • NOM
    • TUV
    • UL 1778
    • VCCI Class A
    Green Compliant
    Yes
    Green Compliance Certificate/Authority
  • REACH
  • RoHS
    • Warranty
    Limited Warranty
    3 Year

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 2 years
    • Warranty Provider: APC
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact APC at (800) 555-2725
    • Technical Support: APC (800) 555-2725 or visit APC technical support online.

    Package Contents

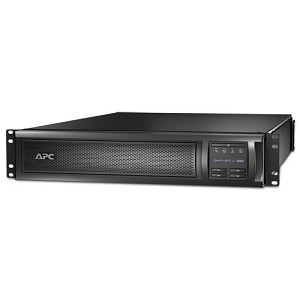

    • Smart-UPS X SMX3000RMLV2UNC 3000 VA Rack-mountable UPS

    • CD with Software

    • Documentation CD

    • Installation Guide

    • Rack Mounting Brackets

    • Rack Mounting Hardware

    • Rack Mounting Support Rails

    • Removable Support Feet

    • Smart UPS Signaling RS-232 Cable

    • USB Cable

    • Web/SNMP Management Card
